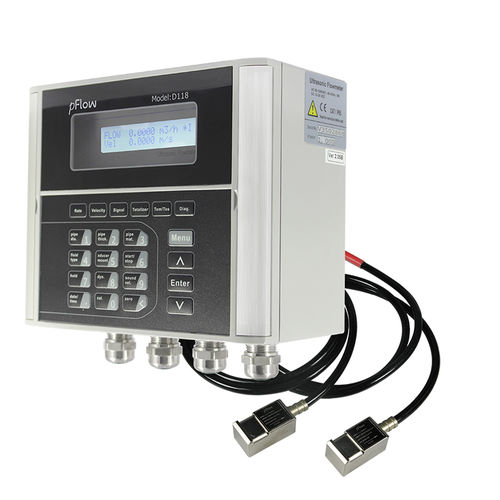

Ultrasonic flowmeter D118

for waterDN25 - 1"clamp-on

Ultrasonic flow meters for higher accuracy and ultimate stability. Introduction The D118 ultrasonic flowmeter is based on Tansit-time technology, which has ultra-high measurement accuracy. D118 uses an external clipped Transducer, which can collect flow data simply by clamping it on the outside of the pipe, and it will never come into contact with the fluid, and will not cause liquid pollution, pressure reduction, leakage, etc. Main Features l Measuring Range: 0.01 to 12m/s l Bi-direction flow measurement l Suitable for lined or unlined metal and plastic pipes Applications Clamp-on flow measurement of drinking water, process water, sea water, demineralized water, wastewater, and tolerant of liquids with small amounts of air bubbles or suspended solids. FUNCTION SPECIFICATIONS Outputs Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable) Realy output: SPST, max 1Hz,(1A@125VAC or 2A@30VDC) SD Card Standard SD card Max record:512days Record time interval Power supply 90 to 245 VAC, 48 to 63 Hz. Or 10 to 36VDC Keypad 22 keys with tactile action Display 40 character, 2 line (20×2) lattice alphanumeric, Humidity Up to 99% RH,non-condensing PHYSICAL SPECIFICATIONS Transmitter NEMA 4X (IP65), Die-cast aluminum Transducer Encapsulated design double-shielded transducer cable Standard/maximum cable length:30ft/1000ft(9m/305m) Weight Transmitter: approximately 2.15kg; Transducer: approximately 0.9kg.
