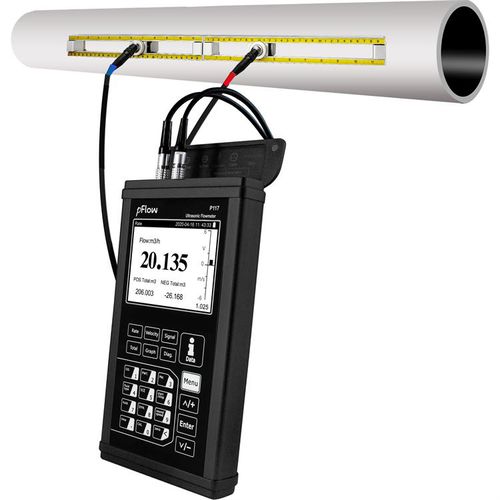

Universal flowmeter P117

for waterDN125 - 5"DN1200 - 48"

Monitor liquid flow from one site to another site freely. Introduction P117 is a hand-held flow meter equipped with external clip-on transducers, which can meet the needs of convenient and fast flow measurement, allowing you to quickly transfer and measure data between different working environments and improve work efficiency. This universal transit-time meter features a dual-function push button interface, ergonomic hand-held design and a beautiful 3.5in TFT backlight digital display that significantly simplifies setup and data collection. Main Features l Measuring Range: 0.01 to 6m/s l Suitable for measuring clean liquids or lightly polluted liquids l Built-in rechargeable lithium battery l 3.5-inch LCD screen and touch buttons Applications Water supply, Water treatment, Irrigation, Boiler, Power plant, sea water metering, salt water metering, etc. Specifications PERFORMANCE SPECIFICATIONS Flow range ±0.03 ~ ±20 ft/s (±0.01~ ±6 m/s) FUNCTION SPECIFICATIONS Outputs Analog output: 4~20mA, Max 750 Ω. SD card Storage: 8GB; Max: 512 files; Interval: 1 ~ 60 seconds. Power supply Rechargeable Lithium Battery Power (continuous operation of main battery 10 hours ). Keypad Tactile Keys. Display 3.5 inch TFT screen( 320 × 240 ), backlight LCD. Humidity 0 to 99% RH,non-condensing PHYSICAL SPECIFICATIONS Transducer Standard cable length: 5m Weight Transmitter: approximately1.0kg
