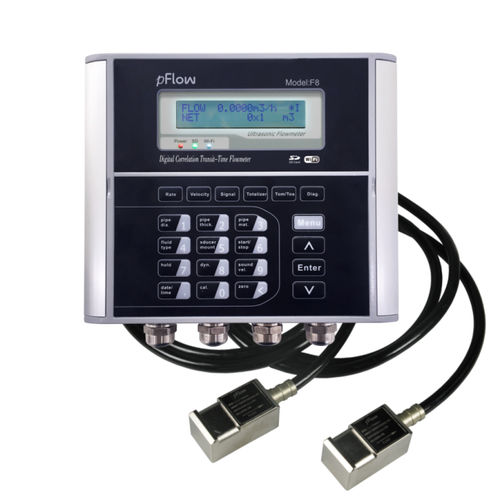

Ultrasonic flowmeter F8

universalfor waterfor wastewater

Smart ultrasonic flowmeter that support WiFi output and Cloud services! Introduction The F8 Flow meters is a state-of-the-art universal transit-time flow meter for heavy industrial applications. Sophisticated electronics incorporating the latest developments in digital signal processing coupled with powerful ultrasonic transducers deliver highly accurate flow measurement for liquids in full pipes. While principally designed for clean liquid applications, the instrument is tolerant of liquids with a small quantity of air bubbles or suspended solids common in most industrial applications. Main Features l Clamp on sensors are simple to install l No pipe cutting or process interruption and no plant shut-down l No risk of contamination Applications l Irrigation and Agricultural Automation l Sewage & Wastewater Treatment Plants l Water in residential or commercial buildings l District heating or cooling water l Metropolitan water distribution Function specifications Optional Outputs Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable) Realy output: SPST, max 1Hz,(1A@125VAC or 2A@30VDC) SD Card Power supply 90 to 245 VAC, 48 to 63 Hz. Or 10 to 36VDC Keypad 22 keys with tactile action Display 40 character, 2 line (20X2) lattice alphanumeric, back lit LCD Standard SD card Max record:512days Record tiHumidity Up to 99% RH,non-condensingme interval Humidity Up to 99% RH,non-condensing Physical specifications Transducer Encapsulated design double-shielded transducer cable Standard/maximum cable length:30ft/1000ft(9m/305m) Transducer cable Standard cable length:30ft(9m) Weight Transmitter:approximately 2.15kg Transmitter:approximately 0.9kg
