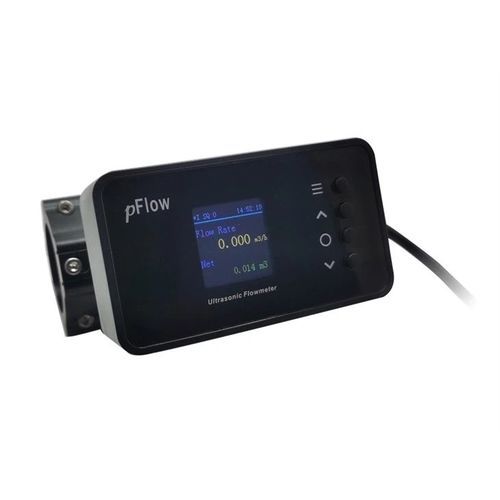

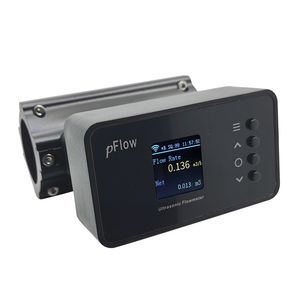

Ultrasonic flowmeter E3W

for waterDN20 - 3/4"DN25 - 1"

E3W adopts ultrasonic transit time measurement principle, combined with Gentos patented flow algorithm technology, it realizes the accurate measurement of the fluid flow in the pipe. The product is simple and convenient to install, and it is all-in-one and clip-on structure design. The instrument adopts WiFi communication, implement cloud data storage, users can access data anytime and anywhere through mobile and PC terminals. Communication Interface RS485(standard), FUJI protocol and MODBUS Protocol Power Supply - 10~36VDC WIFI Frequency range: 2.412~2.484GHz Transmitted power: 802.11b 16±2 dBm; 13±2 dBm; 14±2 dBm Theoretically, the transmission distance can be up to 40 meters in anopen space environment. Keyboard 4 Keys Temperature Humidity Relative humidity 0~99%, No condensation Physical Specifications Transmitter - All-in-one Transducer Clip on Cable wires - φ5 six core cable, standard length: 2m
