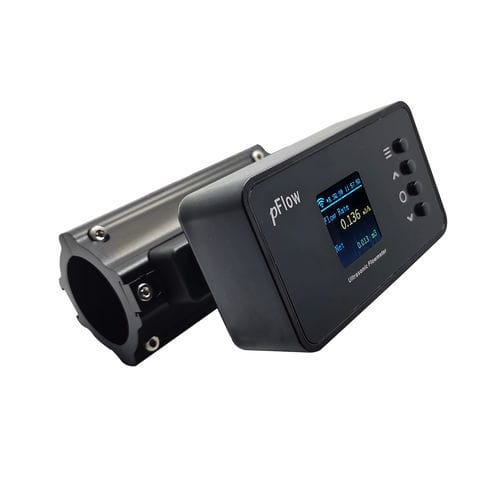

Ultrasonic flowmeter F3W

for liquidsDN20 - 3/4"DN25 - 1"

Adopts the transit time principle Connected through Wi-Fi Support mobile APP to view real-time data Monitor liquid flow without modifying a pipe Introduction The F3W is a small compact clamp-on ultrasonic flowmeter, based on the Time Comb Technology. F3W is very easy to install: clamp it on the pipe, connect it to power and set pipe diameter. The clamp-on design allows the installation in running systems without opening the pipe, providing minimum downtime and maximum availability. Principles of Operation Two sensors are placed on the outside of the pipe. Each sensor transmits ultrasonic pulses through the pipe and then transmits the fluid to the other. The speed of the liquid flowing through the pipe accelerates or decelerates the pulse. The difference between the transit times of the two pulses is used to calculate the flow rate. Using the transition time can make the flowmeter not be affected by pressure or temperature changes. Main Features lMeasuring Range: (0.03～5.0) m/s lSuitable for various narrow working environments+ lSmart phone APP for data tracking Applications lResidential water measurement lUltrapure water measurement lMonitoring of aquaculture systems lHVAC chilled water measurement lAgricultural irrigation Performance specifications Flow range ±0.1ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s) Function specifications Power supply 10~36VDC/500mA Humidity Up to 99% RH,non-condensing Physical specifications Transmitter PC/ABS Cable Length Power cable: standard length 2m
