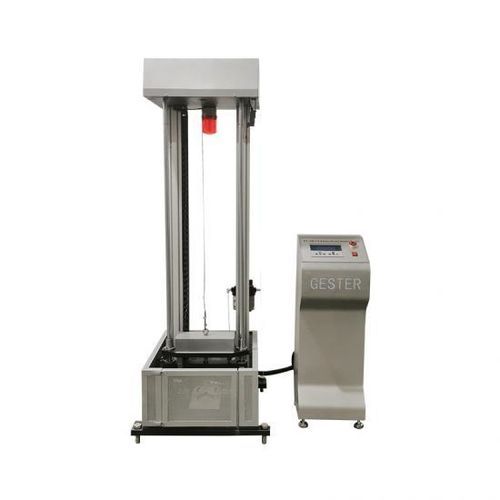

Pendulum impact tester GT-KB17

Product Description
The GT-KB17 Safety Shoes Impact Tester is designed to evaluate the impact resistance of safety footwear by delivering a controlled kinetic energy (100 J or 200 J) to the toecap or specified impact area and measuring subsidence/deformation.

Application
Used in footwear testing laboratories and quality control departments to verify compliance with international impact resistance requirements for safety shoes and toecaps.

Features

• Protective fence to prevent debris or fragments from escaping during tests.
• Separate control box positioned away from the impact zone to enhance operator safety.
• Electromagnetic absorption system for automatic impact-head capture and height setting.
• Two buffer cylinders to prevent secondary impacts and ensure repeatable results.

Key Specifications
Model: GT-KB17A, GT-KB17B, GT-KB17C
Drop height range: 0–1200 mm
Impact energy: GT-KB17A: 200±2 J or 100±2 J; GT-KB17B: 100±2 J; GT-KB17C: 101.7±2 J
Impact hammer: GT-KB17A: wedge, length 75 mm, angle 90°; GT-KB17B / GT-KB17C: cylinder, diameter 25.4 mm
Impact surface: GT-KB17A: corner radius R3 mm; GT-KB17B: spherical radius R25.4 mm; GT-KB17C: length 152.4±3.2 mm
Impact hammer mass: GT-KB17A: 20±0.2 kg; GT-KB17B / GT-KB17C: 22.7±0.23 kg
Power supply: AC 220V 50Hz 5A
Dimensions (L × W × H): 100 × 70 × 200 cm
Weight: approx. 280 kg
Standards: EN ISO 20344-2021 §5.4, §5.20; AS/NZS 2210.2 §5.4, §5.16; GB/T 20991 §5.4, §5.16; BS EN-344-1 §5.3; CSA-Z195-14 §6.2, §6.4; ANSI-Z41 §1.4.5; ASTM F2412-2024 §5, §7; ASTM F2413-2024 §5.2, §5.4; NOM-113-STPS-2009 §8.3, §8.6

Accessories

• Standard accessories: 1 set toecap clamp device.
• Standard accessory: 1 pc power cord.
• Optional accessories: air compressor.
• Optional: Metatarsal protective test clamp device for EN ISO 20344-2020 §5.20.
• Optional: Test clamp device for EN 12568-2010 §5.2.2 / ISO 22568-1-2019 §5.3.1.1.

Application Industry
Suitable for footwear manufacturers, component suppliers and testing laboratories to assess impact resistance and deformation of safety shoes and related materials.

Technical specifications

• Brand: GESTER
• Item No.: GT-KB17
• Order (MOQ): 1
• Payment: T/T, L/C
• Lead time: 10–30 days
• Model variants: GT-KB17A, GT-KB17B, GT-KB17C
• Drop height range: 0–1200 mm
• Impact energy options: 100 J and 200 J (model dependent)
• Impact hammer mass: approx. 20 kg or 22.7 kg depending on model
• Power supply: AC 220V 50Hz 5A
• Dimensions (L×W×H): 100 × 70 × 200 cm
• Weight: ~280 kg
• Compliant standards: EN ISO, AS/NZS, GB/T, BS EN, CSA, ANSI, ASTM, NOM (see Key Specifications)
