Scrub resistance abrasion tester GT-KC01-1for washability testsfor coating
Add to favorites
Compare this product
Characteristics
- Options
- scrub resistance, for washability tests, for coating
Description
Product Name: IULTCS & Veslic Leather Abrasion Tester GT-KC01-1

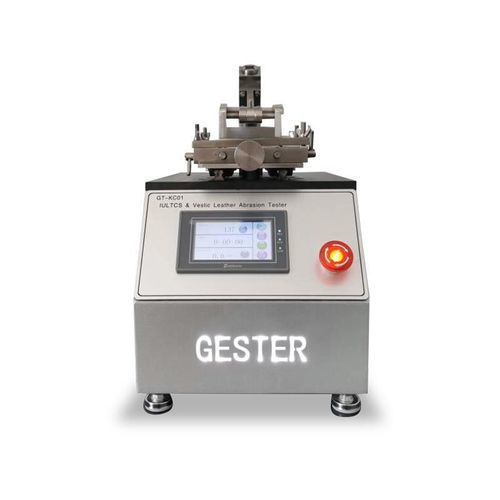

Product Introduction / Application: The GT-KC01-1 leather abrasion (rubbing fastness) tester evaluates color fastness and abrasion resistance of leather, plastics and textiles. Under specified pressure, a white wool felt reciprocates over the dyed sample. After a defined number of cycles the color change of the sample and staining of the wool felt are assessed. The unit supports both dry and wet rubbing tests and is suitable for laboratory quality control and R&D.
Standards:
Key Specifications:
Application Industry: Suitable for testing leather, coated materials, plastics and textiles for rubbing/rubbing color fastness and abrasion performance in footwear, leather goods, automotive interiors, textiles and material R&D labs.
Product Details:
caractéristiques / spécifications techniques:
Product Introduction / Application: The GT-KC01-1 leather abrasion (rubbing fastness) tester evaluates color fastness and abrasion resistance of leather, plastics and textiles. Under specified pressure, a white wool felt reciprocates over the dyed sample. After a defined number of cycles the color change of the sample and staining of the wool felt are assessed. The unit supports both dry and wet rubbing tests and is suitable for laboratory quality control and R&D.
Standards:
- DIN 4843
- ISO 11640
- SATRA PM 173
- AS/NZS 2210.2 section 7.3
- QB/T 2537
- GB/T 20991 section 7.3
- ISO 20868
- GB/T 40920
- EN ISO 20344 section 7.3
- ISO 17700 Method A
- GE-29
Key Specifications:
- Model: GT-KC01-1
- Position: 1
- Control mode: Touch screen control
- Area of testing head: 15 mm × 15 mm
- Movement speed: 40 ± 2 times/min
- Rubbing stroke: 35–40 mm
- Rubbing finger mass: 500 g
- Additional weight mass: 500 g
- Fixtures distance: 80 mm
- Sample size: 120 × 20 mm
- Tension extension range of sample: 0–20%
- Power supply: Single phase AC 220V 50/60Hz
- Dimensions (L × W × H): 490 × 340 × 550 mm
- Weight: 33 kg
Application Industry: Suitable for testing leather, coated materials, plastics and textiles for rubbing/rubbing color fastness and abrasion performance in footwear, leather goods, automotive interiors, textiles and material R&D labs.
Product Details:
- Brand: GESTER
- Item NO.: GT-KC01-1
- Order (MOQ): 1
- Payment: T/T, L/C
- Shipping Port: Xiamen Port
- Lead Time: Have in stock
caractéristiques / spécifications techniques:
- Model: GT-KC01-1
- Position: 1
- Control mode: Touch screen control
- Area of testing head: 15 mm × 15 mm
- Movement speed: 40 ± 2 times/min
- Rubbing stroke: 35–40 mm
- Rubbing finger mass: 500 g
- Additional weight mass: 500 g
- Fixtures distance: 80 mm
- Sample size: 120 × 20 mm
- Tension extension range of sample: 0–20%
- Power supply: Single phase AC 220V 50/60Hz
- Dimensions (L × W × H): 490 × 340 × 550 mm
- Weight: 33 kg
