Resistance testing machine GT-KC06

penetration resistanceautomaticfor water

Product Name

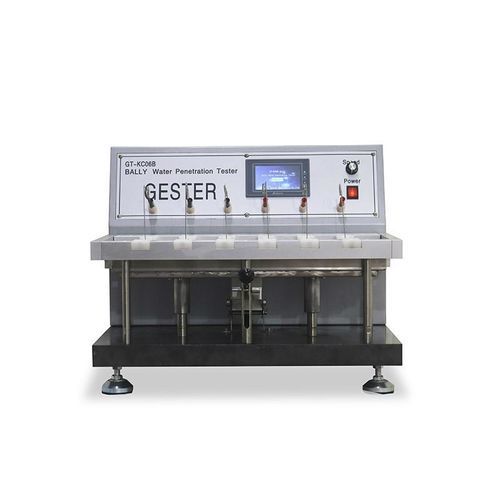

BALLY Water Penetration Tester GT-KC06

Short Description
Dynamic water penetration tester designed to evaluate resistance of leather, artificial leather and textile footwear uppers to water ingress under repeated flexing.

Application
Used to determine the time to water penetration and the amount of water absorbed or transmitted through footwear upper materials during cyclic flexing, to assess suitability for end use and quality control.

Standards
DIN 53338; ISO 5403-1; ISO 17702; EN ISO 20344-2021 §6.13; EN 344-1 §5.12; EN ISO 20347 §6.3.1; AS/NZS 2210.2 §6.13; QB/T 3903.17; GB/T 20991 §6.13

Principle
A rectangular specimen is partially wrapped and clamped between two cylindrical clamps forming a trough. The trough is immersed in water while the clamps oscillate at constant speed, repeatedly flexing the specimen. The time until water penetration is recorded; absorbed and transmitted water mass can be measured.

Key Specifications

• Models: GT-KC06A (4 positions) | GT-KC06B (6 positions)
• Clamp cylinder diameter: 30.0 ± 0.5 mm
• Maximum clamp separation: 40 ± 0.5 mm
• Move clamp stroke: 2, 3, 4, 6 mm
• Move clamp speed: 50 ± 1 rpm
• Sample size: 75 ± 2 mm × 60 ± 1 mm
• Control method: Touch-screen control, programmable 0–999999999 cycles
• Shutdown method: Electrode induction
• Power supply: 1ø AC 220V 50/60Hz
• Dimensions (L×W×H): GT-KC06A: 45 × 55 × 50 cm; GT-KC06B: 60 × 57 × 50 cm
• Weight: GT-KC06A ≈ 48 kg; GT-KC06B ≈ 60 kg

Standard Accessories

• Hose clamp (1 set)
• Power line (1 pc)

Optional Accessories

• GT-KD20 Pneumatic Sample Cutting Machine (Cutter size: 75 ± 2 mm × 60 ± 1 mm)
• Electronic balance (200 g / 0.001 g)

Application Industry
Suitable for footwear and leather testing laboratories, quality control departments and manufacturers assessing water resistance of uppers.

Caractéristiques / Spécifications techniques

• Brand: GESTER
• Item No.: GT-KC06
• Model variants: GT-KC06A, GT-KC06B
• Positions: 4 (A) / 6 (B)
• Clamp cylinder: 30.0 ± 0.5 mm
• Max clamp separation: 40 ± 0.5 mm
• Stroke options: 2, 3, 4, 6 mm
• Speed: 50 ± 1 rpm
• Sample size: 75 ± 2 mm × 60 ± 1 mm
• Control: Touch-screen, programmable cycles up to 999999999
• Shutdown: Electrode induction
• Power: Single phase AC 220V 50/60Hz
• Dimensions: 45 × 55 × 50 cm (A); 60 × 57 × 50 cm (B)
• Weight: ~48 kg (A); ~60 kg (B)
• Standard accessories: hose clamp, power line
• Optional accessories: GT-KD20 cutter, precision electronic balance
• Order (MOQ): 1
• Payment terms: T/T, L/C
• Shipping port: Xiamen Port
• Lead time: 10–30 days
