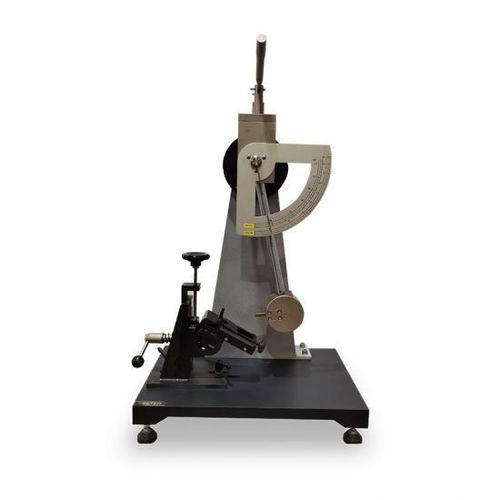

Pendulum impact tester GT-KB14

Product Introduction
Heel Impact Tester GT-KB14 is designed to determine the impact strength of ladies' shoe heels. The test evaluates the tendency of heels to fail when subjected to occasional heavy blows during normal wear.

Application
This tester is suitable for quality control and R&D of high heels, providing repeatable impact tests for different heel constructions, including injection-moulded plastic heels with steel dowel reinforcement.

Standards

• BS-5131-4.8
• ISO 19953
• SATRA TM20

Principle / Feature
The heel is clamped with the tip uppermost and the stem approximately vertical. A pendulum striker delivers measured blows with increasing energy until the heel fails. The method applies to various heel types and gives information on dowel suitability and heel construction under impact loading.

Dimensions
Dimensional drawings and installation space requirements are provided in the product documentation; no numeric dimensions are listed on this page.

Product data
Brand: GESTER
Item NO.: GT-KB14
Order (MOQ): 1
Payment: T/T, L/C
Shipping Port: Xiamen Port
Lead Time: 10-30 days

Technical specifications

• Application: Determination of impact strength of ladies' shoe heels; assessment of failure under occasional heavy blows.
• Standards: BS-5131-4.8; ISO 19953; SATRA TM20.
• Test principle: Repeated pendulum strikes with increasing energy until heel failure; suitable for various heel constructions including injection-moulded plastic heels with steel dowel reinforcement.
• Brand: GESTER.
• Model / Item No.: GT-KB14.
• MOQ: 1 unit.
• Payment terms: T/T, L/C.
• Typical lead time: 10-30 days.
