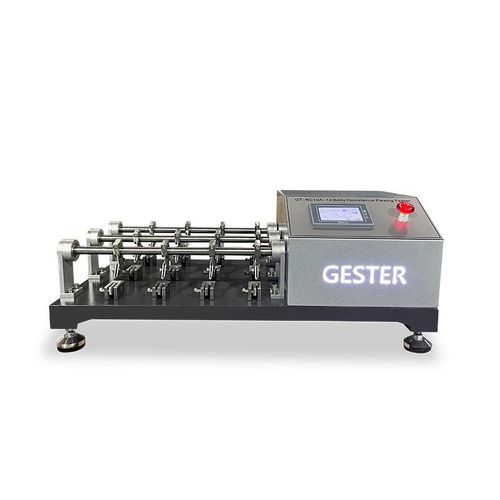

Fatigue testing machine GT-KC10A

durabilitylife cyclemotorized

Product introduction Bally resistance flexing tester determines material resistance to cracking or failure at flexing creases. Applicable to flexible materials, particularly leathers, coated fabrics and textiles used in footwear uppers.

Application Used to evaluate flexing resistance of footwear upper materials. Test specimens are folded, clamped and repeatedly flexed by oscillation; damage is inspected at defined intervals. Tests may be carried out on wet or dry specimens under ambient conditions.

Principle / Feature The specimen is folded in half, one end secured in a clamp, turned inside out and the free end fixed in a second clamp at 90°. The first clamp oscillates through a set angle at a defined speed; number of cycles is recorded and specimen damage visually assessed. Suitable for wet and dry testing of uppers.

Model options GT-KC10A-6 / GT-KC10A-12 / GT-KC10A-24 (see product images for diagram).

Key specifications

• Model: GT-KC10A-6 | GT-KC10A-12 | GT-KC10A-24
• Test positions: 6 / 12 / 24 sets
• Type of upper grips: select per standard chart (Standard)
• Flexing angle: 22.5° ±0.5°
• Flexing speed: 100 ±5 cycles per minute
• Counter: LCD 0–999,999 (adjustable)
• Sample size: 70 ±5 x 45 ±5 mm
• Power supply: Single-phase AC 220V 50/60Hz
• Typical weight: approx. 45 kg / 60 kg / 70 kg (by model)

Standards SATRA TM55; IULTCS/IUP 20-1; ISO 17694; EN 13512; EN344-1 §5.13.1.3 and annex C; EN ISO 20344 §6.6.2.8; GB/T 20991 §6.6.2.8; AS/NZS 2210.2 §6.6.2.8; JIS K6545; BS 3144 cl.13; ISO 32100; DIN 53351; ISO 5402-1; GE-24; ASTM D6182; EN ISO 20344-2021 §6.6.3.

Accessories

• Standard accessories: power line (1 pc)
• Optional accessory: GT-KD20 pneumatic sample cutting machine (cutter size: 70 ±5 x 45 ±5 mm)

Application industry Designed for quality control and R&D in footwear manufacturing to test all kinds of leather and flexible materials used in uppers.

Technical specifications

• Product: Bally Leather Flexing Tester
• Model series: GT-KC10A (-6, -12, -24)
• Test positions: 6 / 12 / 24
• Flexing angle: 22.5° ±0.5°
• Speed: 100 ±5 cycles/min
• Counter: Adjustable LCD 0–999,999
• Sample size: 70 ±5 x 45 ±5 mm
• Power: 1∮ AC 220V 50/60Hz
• Optional cutter: GT-KD20
