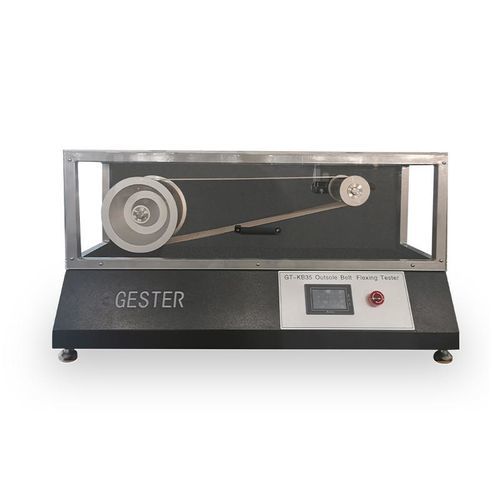

Outsole Belt Flexing Tester GT-KB35

Product Introduction
The GT-KB35 outsole belt flexing tester evaluates resistance of outsole units and related shoe materials to crack initiation and growth under repeated flexing. The unit reproduces walking flex motion with an adjustable cycle count; the machine stops automatically at the preset number. Multiple specimens can be run simultaneously to increase throughput.

Application
Used to assess crack resistance of outsole components and other footwear materials subjected to repeated bending, applicable for quality control, incoming inspection and material R&D in footwear production.

Standards

• SATRA TM 133
• ISO 16177

Feature

• Simulates human walking flex to reproduce service conditions for soles.
• User-configurable cycle count with automatic stop at preset value.
• Capability to test up to 6 specimens simultaneously for improved efficiency.

Key Specifications
Model: GT-KB35
Canvas belt size: Length 1930 ±50 mm; Width 140 ±5 mm
Drive roller: Diameter 225 ±5 mm; Width 170 ±20 mm
Free roller 1 (typical sole units): Centre Ø 90.0 ±0.5 mm; Ends Ø 87 ±1 mm; Width 170 ±20 mm
Free roller 2 (very flexible soles): Centre Ø 60.0 ±0.5 mm; Ends Ø 57 ±1 mm; Width 170 ±20 mm
Free roller 3 (very rigid soles): Centre Ø 120.0 ±0.5 mm; Ends Ø 117 ±1 mm; Width 170 ±20 mm
Belt rotate speed: 90 ±8 CPM
Sampling: MAX. 6 pcs
Counter: LCD 0–999,999
Power supply: 1ø AC 220V 50/60Hz 3A
Dimension (W×D×H): 131 cm × 82 cm × 69 cm
Weight (Approx): 170 kg
Standards: SATRA TM 133, ISO 16177

Accessories (standard / optional)

• Standard: Spanner — 1 pc
• Standard: Canvas belt (consumable) — 1 pc
• Standard: Free rollers — 3 pcs
• Standard: Drive roller — 1 pc
• Standard: Power line — 1 pc
• Optional: Consumable canvas belt

Application Industry
Suitable for testing outsole units and associated shoe materials. Typical users include footwear manufacturers, quality control labs and material R&D departments evaluating flexing resistance of soles and outsole components.

Technical specifications

• Model: GT-KB35
• Belt length: 1930 ±50 mm
• Belt width: 140 ±5 mm
• Drive roller diameter: 225 ±5 mm; width: 170 ±20 mm
• Free roller 1 centre diameter: 90.0 ±0.5 mm; ends diameter: 87 ±1 mm; width: 170 ±20 mm
• Free roller 2 centre diameter: 60.0 ±0.5 mm; ends diameter: 57 ±1 mm; width: 170 ±20 mm
• Free roller 3 centre diameter: 120.0 ±0.5 mm; ends diameter: 117 ±1 mm; width: 170 ±20 mm
• Belt rotate speed: 90 ±8 CPM
• Sampling capacity: up to 6 specimens
• Counter: LCD, range 0–999,999
• Power: Single phase AC 220V, 50/60Hz, 3A
• Overall dimension (W×D×H): 131 × 82 × 69 cm
• Approx. weight: 170 kg
• Compliant standards: SATRA TM 133, ISO 16177
