Immersion tester GT-KA02-2leakagefor shoesfor watertightness tests
Add to favorites
Compare this product
Characteristics
- Test type
- immersion, leakage
- Tested product
- for shoes
- Applications
- for watertightness tests, R&D
- Configuration
- benchtop
- Other characteristics
- with touchscreen
Description
Product Overview
The Dynamic Footwear Water Resistance Tester GT-KA02-2 determines the dynamic water resistance of footwear by flexing a specimen mounted on an artificial last while partially immersed in colored water.
Application
Used for evaluation of water penetration during dynamic flexing of various shoe types. Suitable for quality control, product development and compliance testing.
Standards
Principle
The test tank is filled with a specified volume of colored water. The specimen is fitted to an artificial last and flexed at a predetermined angle and speed. Inspections are made at intervals to detect any water penetration.
Commercial details
Brand: GESTER
Item NO.: GT-KA02-2
Order (MOQ): 1
Payment: T/T, L/C
Shipping Port: Xiamen Port
Lead Time: 10-30 days
Key Specifications

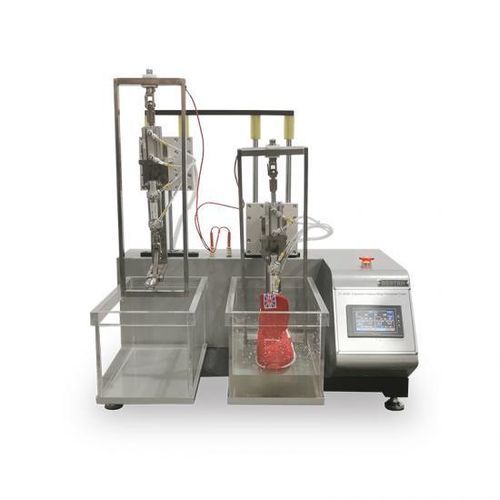

Product Image
Images illustrate machine views and the typical test setup for reference.
Technical specifications
The Dynamic Footwear Water Resistance Tester GT-KA02-2 determines the dynamic water resistance of footwear by flexing a specimen mounted on an artificial last while partially immersed in colored water.
Application
Used for evaluation of water penetration during dynamic flexing of various shoe types. Suitable for quality control, product development and compliance testing.
Standards
- SATRA TM 230
- ISO 20344:2021 section 5.19
- ISO 20344:2020 section 5.19
Principle
The test tank is filled with a specified volume of colored water. The specimen is fitted to an artificial last and flexed at a predetermined angle and speed. Inspections are made at intervals to detect any water penetration.
Commercial details
Brand: GESTER
Item NO.: GT-KA02-2
Order (MOQ): 1
Payment: T/T, L/C
Shipping Port: Xiamen Port
Lead Time: 10-30 days
Key Specifications
- Model: GT-KA02-2
- Control Mode: PLC touch screen
- Test Quantity: 2 sets
- Flexing Angle: 25±2°
- Flexing Speed: 60±6 cpm
- Counter: 0–999,999
Product Image
Images illustrate machine views and the typical test setup for reference.
Technical specifications
- Dimension (W×D×H): 85×70×80 cm
- Weight: Approx 110 kg
- Power: Single phase, AC 220V, 50/60Hz, 3A (specified by user)
- Standards: SATRA TM 230; ISO 20344:2021 section 5.19; ISO 20344:2020 section 5.19
- Standard Accessories: Water sensor ×2
- Commercial: MOQ 1; Payment: T/T, L/C; Shipping Port: Xiamen Port; Lead Time: 10–30 days
