Lug type valve 038
butterflyelectrically-operatedmanual

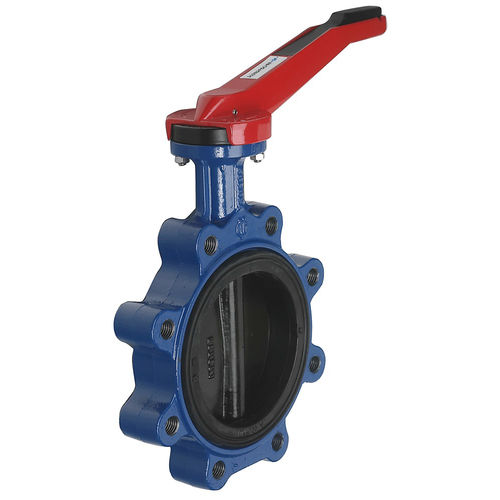

Lug type valve - 038 - GF Piping Systems - butterfly / electrically-operated / manual
Lug type valve - 038 - GF Piping Systems - butterfly / electrically-operated / manual
Lug type valve - 038 - GF Piping Systems - butterfly / electrically-operated / manual - image - 2
Add to favorites
Compare this product

Characteristics

Type
butterfly
Operation
manual, pneumatically-operated, electrically-operated
Media
for water
Body
in-line, lug type, coated
Applications
flange, shaft
Material
cast iron, Rilsan®
Other characteristics
standard
DN

Min.: 50 mm
(1.969 in)

Max.: 200 mm
(7.874 in)

Pressure

16 bar
(232.1 psi)

Flow rate

Min.: 3,140 l/min
(829.5 us gal/min)

Max.: 47,130 l/min
(12,450.43 us gal/min)

Description

This lug style butterfly valve has an epoxy- or Rilsan-coated ductile cast iron housing. It can be used as an end or intermediate valve. If the valve is used at the end of a line, the maximum pressure is 5.6 bar for DN50 to DN100 and 3.5 bar above DN200. Bare Shaft/Flange standard metric - PN10 /Disc: ductile iron/Rilsan® coated Lug Style Body GGG40 (A 395 / A395 M-99, EN-JIS 1020 EN1563) Rilsan® coating Body from DN350 Epoxy® coating Installation length: EN 558 row 20 Interface according to DIN EN ISO 5211 Single-piece axis with square profile, up to DN 600 mm 2-pieces axis Flange connection: DIN PN 10, other flange connections on request Option: Available with handlever, handwheel, electric or pneumatic actuator Other liner material on request
