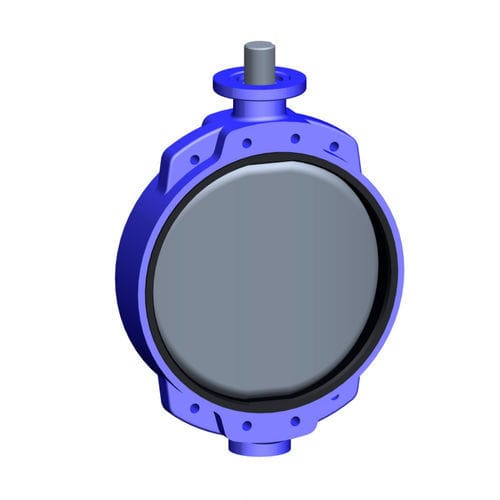

Wafer valve 039butterflymanualelectrically-operated

wafer valve
wafer valve
wafer valve
wafer valve
wafer valve
wafer valve
wafer valve
Add to favorites
Compare this product
indicative price

Characteristics

Type
butterfly
Operation
manual, electrically-operated, pneumatically-operated
Media
for water
Body
wafer, cast iron
Pressure

Max.: 16 bar (232.1 psi)

Min.: 4 bar (58 psi)

DN

Max.: 1,200 mm (47.244 in)

Min.: 50 mm (1.969 in)

Flow rate

Max.: 1,907,050 l/min (503,789 us gal/min)

Min.: 3,140 l/min (830 us gal/min)

Description

Type 039 Butterfly Valve - GF Piping Systems This wafer-style butterfly valve has an epoxy-coated ductile iron housing (other liner materials available on request). It has a standard connection dimension of EN 1092 PN10 and a mounting flange according to EN ISO 5211. It is only meant for use as an intermediate valve. Metal - butterfly valve type 039 Bare shaft metric DN350-1200 / Disc: ductile iron/Epoxy® coated Option: •Available with handlever, handwheel, electric or pneumatic actuator •Other liner material on request Model: •Wafer Style •Housing: Ductile Iron ASTM A 395, Epoxy coated •Body from DN350 Epoxy® coating •Shaft end: key way, parallel square available on request •Top flange according to EN ISO 5211 •Pressure range: 16 bar (DN 50-300); 10 bar (DN 350-600) •Up to DN 1200: Overall length according to EN 558, line 20, ISO 5752 •Connecting dimension: EN 1092 PN10, any other standard on request Metal - butterfly valve type 039 Bare shaft - Metric/Inch/ASTM / Disc: Ductile Iron/Rilsan® coated Option: •Available with handlever, handwheel, electric or pneumatic actuator •Other liner material on request Model: •Wafer Style •Body GGG40 (A 395 / A395 M-99, EN-JIS 1020 EN1563) Rilsan® coating •Body from DN350 Epoxy® coating •Installation length: EN 558 row 20 •Interface according to DIN EN ISO 5211 •Pressure range: 16 bar (DN 50-300); 10 bar (DN 350-600) •Single-piece axis with square profile, up to DN 600 mm 2-pieces axis •Multiple flange connection: DIN PN 6/10/16; other standard e.g. ANSI/ASME B16.5 Class 150 on request
