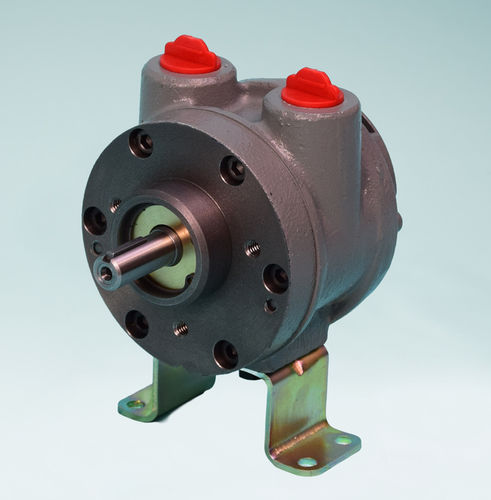

Vane air motor V2

for atmospheres containing explosive dustfor heavy-duty applicationsstandard

You need a NON LUBRICATED compact motor that delivers power from compressed air, featuring ATEX‑compatible construction as standard. It is intended for applications requiring safe operation in hazardous atmospheres and easy serviceability.
Its robust design beats space fragile designs (no more expensive redesigns),
while the 4-vane motor delivers the consistent, high starting torque you count on. You've got options: the range features 3 different models covering up to 0.72 kW, all available in standard or corrosion-proof stainless steel versions, and each motor has a full set of assembly accessories. It’s the durable, low-maintenance (lube-free) solution built to protect your reputation, especially in tough food and chemical environments.
You can also use the free online selector to get a motor recommendation and the 3D plans in about a minute.

Characteristics (product attributes)
Max Power (kW): 0.72
Max Power (HP): 0.97
Torque at Max Pwr (Nm): 2.30
Min. Start Torque (Nm): 2.03
Torque at Max Pwr (lb⋅ft): 1.70
Min. Start Torque (lb⋅ft): 1.50
Torque at Max Pwr (lb⋅inch): 20.39
Min. Start Torque (lb⋅inch): 18
Max Speed (RPM): 3,000
ATEX: Standard
