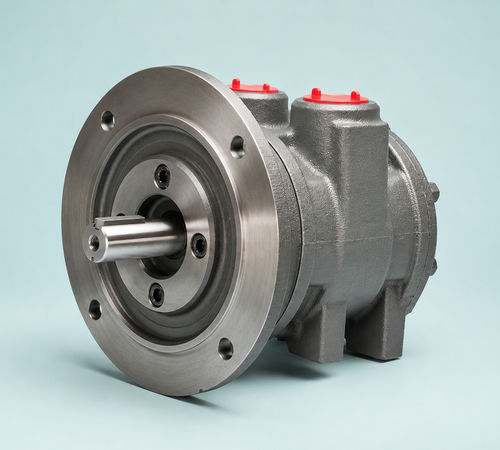

Vane air motor V12

for atmospheres containing explosive dustfor heavy-duty applicationsstandardized

Overview
GLOBE Airmotors V12 NON LUBRICATED is a pneumatic vane (vane) motor rated at 9.48 kW (12.71 HP). It is a non-lubricated, spark-free unit designed for industrial applications where electric drives are unsuitable, including wet, explosive or heavy-duty environments. The V12 NON LUBRICATED is part of the V12 product family and is engineered for reliable torque delivery with low maintenance requirements.

Key features

• Non-lubricated pneumatic vane motor (spark-free)
• Low-maintenance construction
• Optimized for wet, explosive or heavy-duty sites
• Suitable where electric drive systems are unsuitable
• ATEX: Standard

Variants / Data table
Productname | Max Power (kW) | Max Power (HP) | Torque at Max Pwr (Nm) | Min. Start Torque (Nm) | Max Speed (RPM) | ATEX | Weight (kg)
VS12C-NL | 9.48 | 12.71 | 67.05 | 64.80 | 1,350 | Standard | 40
VA12C-NL | 9.48 | 12.71 | 67.05 | 64.80 | 1,350 | Standard | 40

Product Description
The V12 NON LUBRICATED delivers continuous torque up to the rated power while avoiding the need for oil lubrication. It is configured for environments where sparks or electrical equipment present hazards, and where access for routine lubrication is limited. Installation and integration are facilitated by standardized mounting and shaft options.

Technical specifications

• Max Power (kW): 9.48
• Max Power (HP): 12.71
• Torque at Max Pwr (Nm): 67.05
• Min. Start Torque (Nm): 64.80
• Torque at Max Pwr (lb⋅ft): 49.45
• Min. Start Torque (lb⋅ft): 47.79
• Torque at Max Pwr (lb⋅inch): 593.40
• Min. Start Torque (lb⋅inch): 573.50
• Max Speed (RPM): 1,350
• ATEX: Standard
• Typical Weight (kg): 40
