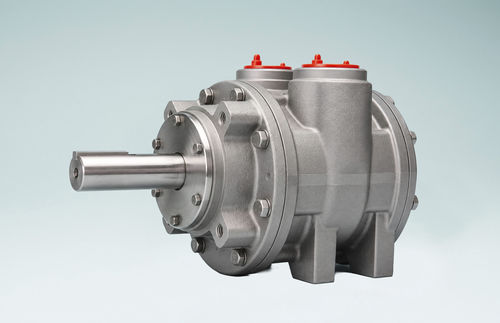

Vane air motor V10

for atmospheres containing explosive dustfor heavy-duty applicationsfor the food industry

Product Description
V10 NON LUBRICATED is a high-performance pneumatic vane air motor engineered for demanding industrial use. Designed and manufactured by GLOBE Airmotors, the V10 NON LUBRICATED delivers reliable, oil-free power where electric motors are impractical — in wet, explosive, or heavy-duty environments. Its non-lubricated design eliminates oil contamination risks and reduces maintenance cycles, making the V10 NON LUBRICATED ideal for food processing, chemical plants, and ATEX-priority zones.

Highlighted overview

• Pneumatic vane air motor, oil-free (non-lubricated) design
• Spark-free and low-maintenance; suitable for wet, explosive or heavy-duty environments
• Applications: food processing, chemical plants and ATEX-priority zones

Product specifications (from table)
Max Power (kW): 7.25
Max Power (HP): 9.72
Torque at Max Pwr (Nm): 38.44
Min. Start Torque (Nm): 33.56
Torque at Max Pwr (lb⋅ft): 28.35
Min. Start Torque (lb⋅ft): 24.75
Max Speed (RPM): 1,600
ATEX: Standard

Technical specifications

• Max Power: 7.25 kW (9.72 HP)
• Torque at Max Power: 38.44 Nm (28.35 lb⋅ft)
• Minimum Start Torque: 33.56 Nm (24.75 lb⋅ft)
• Maximum Speed: 1,600 RPM
• ATEX: Standard (suitable for ATEX-priority zones)
• Non-lubricated (oil-free) design to minimize contamination risk and maintenance
• Typical applications: food processing, chemical plants, wet/explosive/heavy-duty environments
