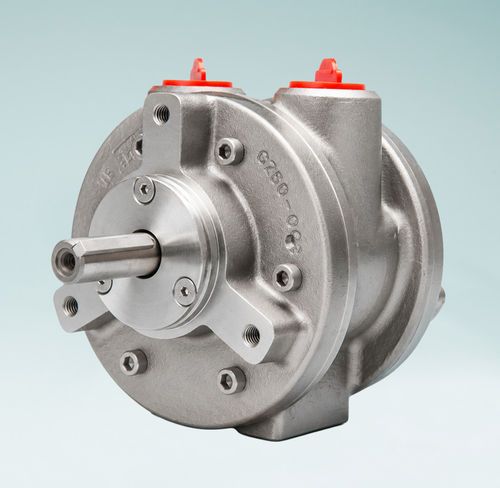

Vane air motor V6

rotary vanefor atmospheres containing explosive dustfor heavy-duty applications

Product description
GLOBE Airmotors designs and manufactures pneumatic vane air motors for demanding industrial environments. The V6 STAINLESS STEEL is a stainless-steel vane motor intended for applications where electrical drives are impractical or unsafe, such as wet, hygienic, corrosive or potentially explosive atmospheres.

Key features

• Stainless-steel construction for corrosion resistance and hygienic applications
• Spark-free, low-maintenance design suitable for wet, explosive or heavy-duty use

Characteristics
Max Power (kW): 3.88
Max Power (HP): 5.20
Torque at Max Pwr (Nm): 12.34
Min. Start Torque (Nm): 8.54
Torque at Max Pwr (lb⋅ft): 9.10
Min. Start Torque (lb⋅ft): 6.30
Max Speed (RPM): 3,000
ATEX: Standard

Available variants (summary)
Model: VA6J-RVS — Max Power (kW): 3.88 — Max Power (HP): 5.20 — Torque at Max Pwr (Nm): 12.34 — Torque at Max Pwr (lb⋅ft): 9.10 — Min. Start Torque (Nm): 8.54 — Min. Start Torque (lb⋅ft): 6.30 — Max Speed (rpm): 3,000 — ATEX: Standard — Weight (kg): 8
Model: VA6X-RVS — Max Power (kW): 3.88 — Max Power (HP): 5.20 — Torque at Max Pwr (Nm): 12.34 — Torque at Max Pwr (lb⋅ft): 9.10 — Min. Start Torque (Nm): 8.54 — Min. Start Torque (lb⋅ft): 6.30 — Max Speed (rpm): 3,000 — ATEX: Standard — Weight (kg): 8
Model: VS6C-RVS — Max Power (kW): 3.88 — Max Power (HP): 5.20 — Torque at Max Pwr (Nm): 12.34 — Torque at Max Pwr (lb⋅ft): 9.10 — Min. Start Torque (Nm): 8.54 — Min. Start Torque (lb⋅ft): 6.30 — Max Speed (rpm): 3,000 — ATEX: Standard — Weight (kg): 12
Model: VA6C-RVS — Max Power (kW): 3.88 — Max Power (HP): 5.20 — Torque at Max Pwr (Nm): 12.34 — Torque at Max Pwr (lb⋅ft): 9.10 — Min. Start Torque (Nm): 8.54 — Min. Start Torque (lb⋅ft): 6.30 — Max Speed (rpm): 3,000 — ATEX: Standard — Weight (kg): 12

Technical specifications

• Series: V6 STAINLESS STEEL
• Construction: stainless steel, corrosion-resistant
• Max power: 3.88 kW (5.20 HP)
• Torque at max power: 12.34 Nm (9.10 lb⋅ft)
• Minimum start torque: 8.54 Nm (6.30 lb⋅ft)
• Maximum speed: 3,000 rpm
• ATEX: Standard
• Weight: approx. 8 kg or 12 kg depending on model
• Application notes: spark-free, low-maintenance operation for wet, hygienic, corrosive or explosive-prone environments
