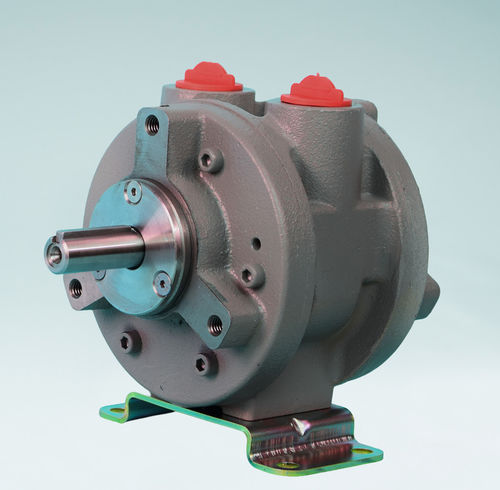

Vane air motor V6

for atmospheres containing explosive dustfor heavy-duty applicationsATEX

Product overview
V6 NON LUBRICATED is a pneumatic vane motor by GLOBE Airmotors engineered for industrial environments where electrical drives are impractical or unsafe. Designed for operation on dry compressed air, it provides consistent torque, low maintenance and suitability for hazardous atmospheres where specified.

Key features

• Non-lubricated design: operates on dry compressed air for lubrication-free installations.
• ATEX compatibility as standard for specified models.
• Compact and lightweight: 8 kg for easy integration into tool systems.

Technical specifications

• Max power: 2.73 kW (3.66 HP)
• Torque at max power: 11.59 Nm (8.55 lb⋅ft)
• Minimum start torque: 7.69 Nm (5.67 lb⋅ft)
• Maximum speed: 2,250 RPM
• Weight: 8 kg
• Design: non-lubricated (operates on dry compressed air)
• ATEX: standard (where specified)

Available variants

• VA6J-NL
• VA6X-NL
• VS6C-NL
• VA6C-NL

Applications and installation notes

• Suitable for wet, explosive or heavy-duty environments requiring oil-free operation.
• Use clean, dry compressed air; follow GLOBE Airmotors guidelines for filtration, pressure and installation.
