Vane air motor V4

for atmospheres containing explosive dustfor heavy-duty applicationsATEX

Product description

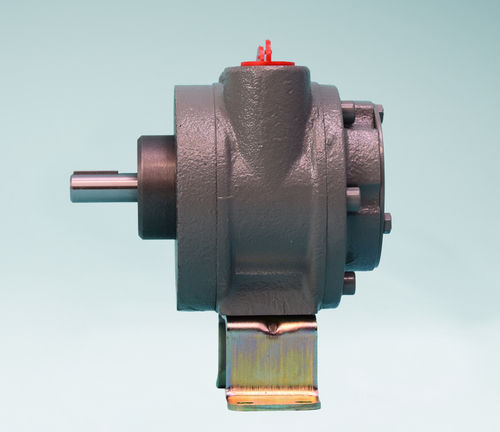

The V4 NON LUBRICATED is a pneumatic vane air motor designed and manufactured by GLOBE Airmotors for demanding industrial applications. As a non-lubricated vane motor in the V4 Vane Motor product group, the V4 NON LUBRICATED operates on compressed air, is spark‑free and requires minimal maintenance, making it suitable for wet, explosive or heavy‑duty environments where electric motors are unsuitable.

Available variants (examples shown on this page)

• VA4J-NL — Max Power 1.59 kW / 2.13 HP — Weight 4.20 kg
• VA4X-NL — Max Power 1.59 kW / 2.13 HP — Weight 4.20 kg
• VS4C-NL — Max Power 1.59 kW / 2.13 HP — Weight 5.00 kg
• VA4C-NL — Max Power 1.59 kW / 2.13 HP — Weight 5.00 kg

Technical features / specifications

• Max Power (kW): 1.59
• Max Power (HP): 2.13
• Torque at Max Power (Nm): 5.06
• Min. Start Torque (Nm): 4.27
• Torque at Max Power (lb⋅ft): 4.50 (general attribute); individual SKU rows may show variant-specific lb⋅ft values
• Min. Start Torque (lb⋅ft): 3.22
• Torque at Max Power (lb⋅inch): 54
• Min. Start Torque (lb⋅inch): 38.60
• Max Speed (RPM): 3,000
• ATEX: Standard (ATEX option available / marked as Standard on page)
