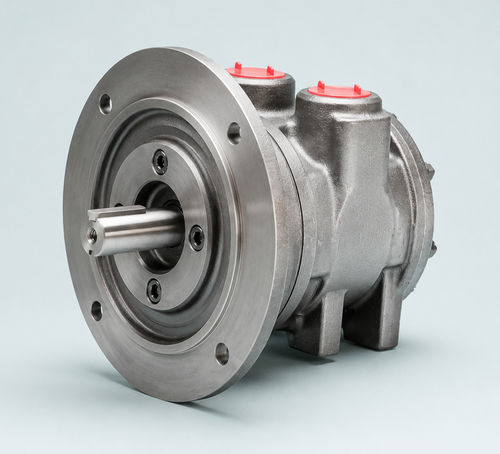

Rotary vane air motor V12

for heavy-duty applicationsATEXlubricated

Product overview
GLOBE Airmotors V12 STAINLESS STEEL is a pneumatic vane air motor engineered for demanding industrial environments. It operates on compressed air, providing spark-free power suitable for wet, corrosive or potentially explosive atmospheres while minimizing maintenance requirements.

Key features

• Operates on compressed air (pneumatic)
• Corrosion-resistant stainless steel construction
• Spark-free operation suitable for explosive atmospheres
• Low-maintenance design
• Designed for wet, heavy-duty and corrosive applications
• ATEX: Standard

Characteristics
Max Power (kW): 14
Max Power (HP): 19
Torque at Max Pwr (Nm): 75
Min. Start Torque (Nm): 72
Torque at Max Pwr (lb⋅ft): 55.20
Min. Start Torque (lb⋅ft): 53
Torque at Max Pwr (lb⋅inch): 662.40
Min. Start Torque (lb⋅inch): 636
Max Speed (RPM): 1,800
ATEX: Standard

Available variants

• VS12C-RVS — Max Power 14 kW / 19 HP; Torque at Max Pwr 74.58 Nm; Min. Start Torque 73.22 Nm; Max Speed 1,800 rpm; Weight 40 kg
• VA12C-RVS — Max Power 14 kW / 19 HP; Torque at Max Pwr 74.58 Nm; Min. Start Torque 73.22 Nm; Max Speed 1,800 rpm; Weight 40 kg

Technical specifications

• Type: Pneumatic vane air motor
• Construction: Stainless steel (corrosion-resistant)
• Power: 14 kW (19 HP)
• Torque at max power: 75 Nm (variant listed as 74.58 Nm)
• Minimum start torque: 72 Nm (variant listed as 73.22 Nm)
• Max speed: 1,800 rpm
• ATEX: Standard
• Weight: 40 kg (per variant)
