Vane air motor V8

ATEXnon-lubricated

Product overview

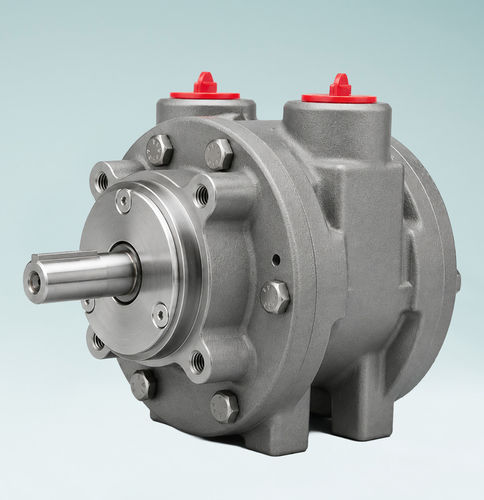

GLOBE Airmotors V8 NON LUBRICATED is a pneumatic vane air motor designed for industrial applications where electric drives are unsuitable. The non-lubricated construction enables spark-free operation in wet, dusty or potentially explosive environments while minimising maintenance requirements.

Key specifications

• Max power: 4.17 kW (5.59 HP)
• Torque at max power: 17.70 Nm (13.50 lb⋅ft)
• Minimum start torque: 15.38 Nm (11.34 lb⋅ft)
• Max speed: 2,250 rpm
• ATEX: Standard
• Design: non-lubricated pneumatic vane motor, spark-free

Available variants

• VA8J-NL — 4.17 kW, 2,250 rpm, weight 12 kg
• VA8X-NL — 4.17 kW, 2,250 rpm, weight 12 kg
• VS8C-NL — 4.17 kW, 2,250 rpm, weight 12 kg
• VA8C-NL — 4.17 kW, 2,250 rpm, weight 13 kg

Applications

Suitable for torque-driven industrial tasks where sparks or oil contamination are critical concerns, including chemical, foundry, marine and other hazardous-area operations. Use where electrification is impractical or unsafe.

Technical details

• Model name: V8 NON LUBRICATED
• Manufacturer: GLOBE Airmotors
• Max power: 4.17 kW (5.59 HP)
• Torque at max power: 17.70 Nm (13.50 lb⋅ft)
• Min. start torque: 15.38 Nm (11.34 lb⋅ft)
• Max speed: 2,250 rpm
• ATEX: Standard
• Available SKUs: VA8J-NL, VA8X-NL, VS8C-NL, VA8C-NL
• Weights: 12 kg (typical variants), 13 kg (VA8C-NL)
