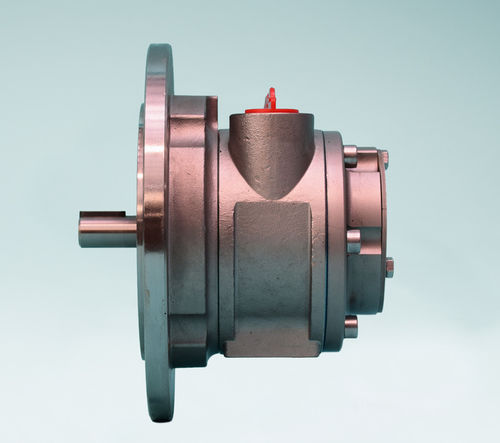

Rotary vane air motor V4

for heavy-duty applicationsATEXlubricated

Product description
The V4 STAINLESS STEEL pneumatic vane air motor from GLOBE Airmotors is engineered for industrial applications where electrical drives are impractical or unsafe. Constructed in stainless steel, the V4 STAINLESS STEEL provides reliable torque and power in wet, corrosive or potentially explosive environments, making it suitable for heavy-duty production lines, hazardous-area tooling and washdown processes.

Key features and applications

• Spark-free pneumatic vane motor for wet, corrosive or explosive atmospheres
• Low-maintenance design adapted to continuous industrial operation
• Provides consistent torque and power for production lines and hazardous-area tooling
• Stainless-steel construction for durability in corrosive and high-moisture environments

Available variants (from product table)

• VA4J-RVS — Max Power 2.10 kW / 2.80 HP; Torque at Max Pwr 5.02 Nm (3.70 lb⋅ft); Min. Start Torque 4.88 Nm (3.60 lb⋅ft); Max Speed 4,000 RPM; ATEX: Standard; Weight: 4.20 kg
• VA4X-RVS — Max Power 2.10 kW / 2.80 HP; Torque at Max Pwr 5.02 Nm (3.70 lb⋅ft); Min. Start Torque 4.88 Nm (3.60 lb⋅ft); Max Speed 4,000 RPM; ATEX: Standard; Weight: 4.20 kg
• VS4C-RVS — Max Power 2.10 kW / 2.80 HP; Torque at Max Pwr 5.02 Nm (3.70 lb⋅ft); Min. Start Torque 4.88 Nm (3.60 lb⋅ft); Max Speed 4,000 RPM; ATEX: Standard; Weight: 4.20 kg
• VA4C-RVS — Max Power 2.10 kW / 2.80 HP; Torque at Max Pwr 5.02 Nm (3.70 lb⋅ft); Min. Start Torque 4.88 Nm (3.60 lb⋅ft); Max Speed 4,000 RPM; ATEX: Standard; Weight: 5.00 kg

Technical specifications

• Max Power (kW): 2.10
• Max Power (HP): 2.80
• Torque at Max Pwr (Nm): 5.02
• Min. Start Torque (Nm): 4.88
• Torque at Max Pwr (lb⋅ft): 3.70
• Min. Start Torque (lb⋅ft): 3.60
• Torque at Max Pwr (lb⋅inch): 44.40
• Min. Start Torque (lb⋅inch): 43.20
• Max Speed (RPM): 4,000
• ATEX: Standard
