Impeller pump 3171 CV

waterwastewaterfor chemicals

Product overview

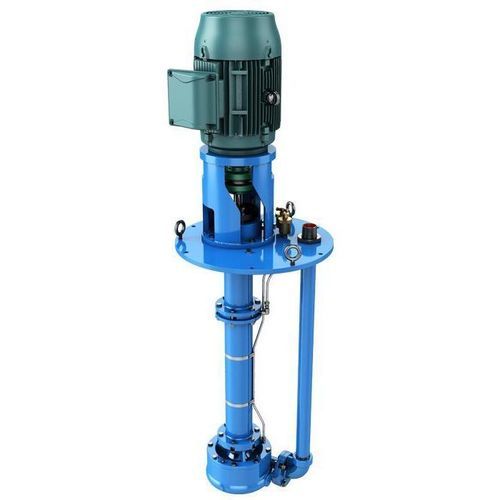

The 3171 CV is a recessed-impeller circular-volute vertical sump and process pump engineered to handle large solids and shear-sensitive fluids. It will pass any solid that can pass through the discharge pipe and is suitable for pit installations and tank unloading.

Model
3171 CV

Product type
Vertical sump & process pump

Specifications

• Capacity: up to 1300 GPM (295 m3/h)
• Maximum head: 280 ft (85 m)
• Maximum temperature: 450° F (232° C)
• Pit depth capability: up to 20 ft (6 m)
• Self-priming
• Double-row thrust bearing
• One-piece shaft
• External impeller adjustment
• Available in a wide range of alloys
• Recessed impeller design
• Sealless design

Applications

• Fibrous wastewater
• Industrial processes
• Industrial sump waste
• Tank unloading
• Corrosive and non-corrosive liquids
• Food processing

Technical specifications

• Type: Recessed-impeller circular-volute sump pump
• Model designation: 3171 CV
• Capacity: up to 1300 GPM (295 m3/h)
• Maximum head: 280 ft (85 m)
• Maximum temperature: 450° F (232° C)
• Pit depth capability: up to 20 ft (6 m)
• Self-priming: yes
• Bearing: double-row thrust bearing
• Shaft: one-piece shaft
• Impeller: external adjustment; recessed design
• Design options: sealless design; available in a wide range of alloys
