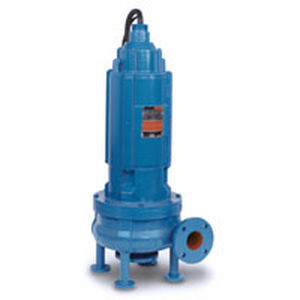

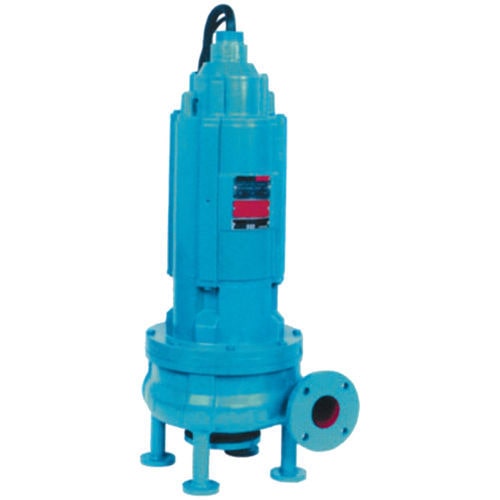

Impeller pump HSUL

slurryelectricsubmersible

Submersible recessed impeller pumps easily handle any solid up to its suction/discharge size. Versatile mounting allows pump to stand or to be mounted on an optional slide rail arrangement. Fully Recessed Impeller - Allows large, stringy or fibrous material to pass through the pump without binding or clogging. Concentric Casing - Concentric design facilitates flow of pumpage and solids through the pump while minimizing loads. Legs - Bolt-on legs provide stability on sump floor. Mounting Flexibility - Flanged suction and horizontal discharge allow pump to stand or be mounted on optional slide rail. Interchangeability - Casing and optional wear ring are interchangeable with Goulds Model HS (horizontal) and VHS (vertical cantilever) pumps to reduce inventory. Waste Treatment Plants Reclaim Sumps Sludge Pits General Service Sumps Power Plants Drainage Sumps Sewage Wet Wells Industrial Waste Sumps Collection Basins Wood Yard Sumps Submersible Motors Goulds submersible series motors are designed and built specifically for tough slurry pumping. Heavy-duty design features for reliability include: UL and CSA Approved Explosion PRoof Epoxy encapsulated and butt-spliced cable entry system prevents liquid from entering top of motor and provides non-wicking design Permanently lubricated and sealed ball bearings F Class insulation and 1.15 service factor standard Tandem mechanical seals provide complete protection for motor internals Thermal protection standard
