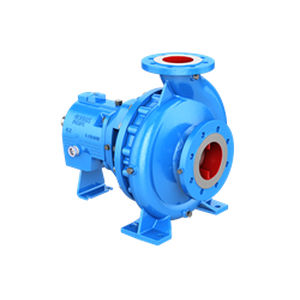

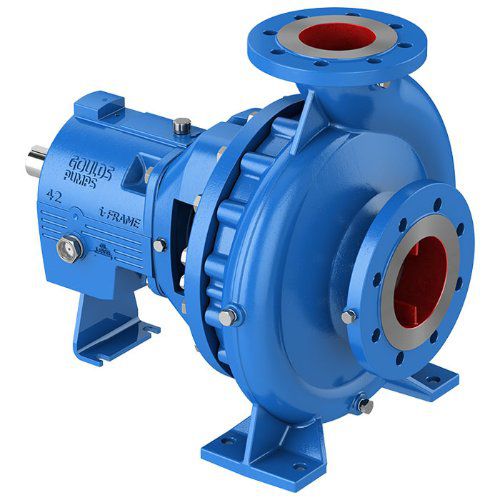

Centrifugal pump IC i-FRAME waterfor chemicalselectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water, for chemicals
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, chemical, for petrochemical applications
- Applications
- process, cooling, chemical process, sump, recycling
- Material
- metal
- Other characteristics
- large, modular, open, vertical, seal
- Flow
450 m³/h
(15,891.60002 ft³/h)- Pressure
25 bar
(362.594 psi)- Head
160 m
(524'11" )- Fluid temperature
Max.: 280 °C
(536 °F)Min.: -40 °C
(-40 °F)- Weight
Max.: 305 kg
(672.41 lb)Min.: 42 kg
(92.59 lb)
Description
Reducing Pump Life Cycle Costs the Goulds Pumps IC family of ISO chemical process pumps is designed in accordance with ISO 5199 and ISO 2858, making it ideal for worldwide chemical or industrial process application.
Specifications
Patented Cyclone Seal Chamber for Extended Seal Life
Heavy Duty Bearing Frame, with Large Oil Sump Extends Bearing Life
Enclosed Impeller with Optional Wear Ring for Renewable Efficiency
Optional PumpSmart® Variable Frequency Drive For Optimized Performance and Extended Reliability
Catalogs
IC i-FRAME
24 Pages
IC i-FRAME series
11 Pages
