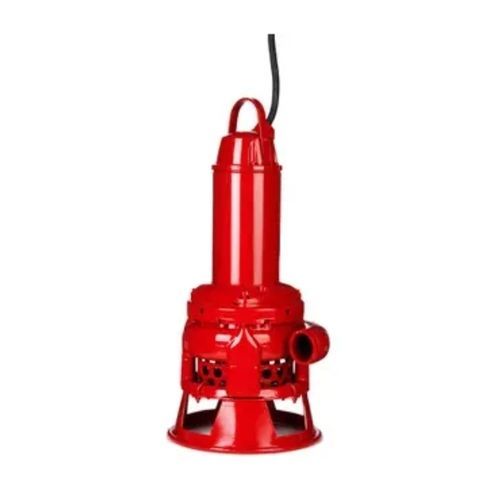

Slurry pump Bravo 400centrifugalelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- slurry
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial, for the mining industry, for the construction industry
- Applications
- discharge, booster
- Protection level
- wear-resistant, IP68
- Flow
Max.: 216 m³/h
(15.85032 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
20 m
(65'07" )- Power
52 kW, 56 kW
(70.7 hp, 76.14 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Output diameter
875 mm
(34.449 in)- Height
1,652 mm
(65.04 in)- Weight
613 kg
(1,351.43 lb)
Description
Product Features
Max submersion: 20m/66 ft
Cable: 20 m/66 ft SUBCAB [This pump requires an external starter box]
Discharge connection: Victaulic
Limitations: ph 5.5-14
Submersible slurry pumps for pumping fluids with abrasive solids.
The Bravo 400 is extremely wear-resistant thanks to the use of Hard-iron™ and the low shaft speed. Equipped with an agitator to enhance the 'up-stirring' capabilities it is a superior quality pump for all kinds of slurry applications. Also available in Explosion Proof version.
