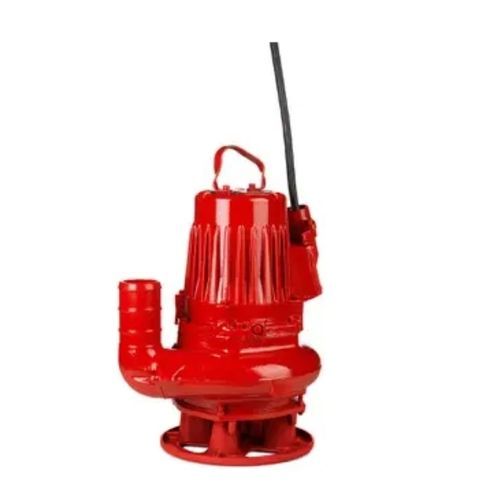

Slurry pump Bravo 200centrifugalelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- slurry
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial, for the mining industry, for the construction industry
- Applications
- discharge, booster
- Voltage
- 380 V
- Protection level
- IP68
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 100.8 m³/h
(7.39682 ft³/h)- Power
7.5 kW, 8.9 kW
(10.2 hp, 12.1 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Output diameter
460 mm
(18.11 in)- Height
760 mm
(29.92 in)- Weight
157 kg
(346.13 lb)
Description
Product Features
Max submersion: 20m/66 ft
Cable: 20 m/66 ft SUBCAB [This pump requires an external starter box ]
Discharge connection: Hose, BSP or NPT
Limitations: ph 5.5-14
Submersible slurry pumps for pumping fluids with abrasive solids.
All slurry applications don't require heavy duty pumps, and to meet this demand Grindex offer two smaller models, Bravo 200 and Bravo 300. They are intended for applications with lower demands on capability and wear resistance, and they are not equipped with agitator. For capacities below these, we recommend Grindex sludge pumps. Also available in Explosion Proof version.
