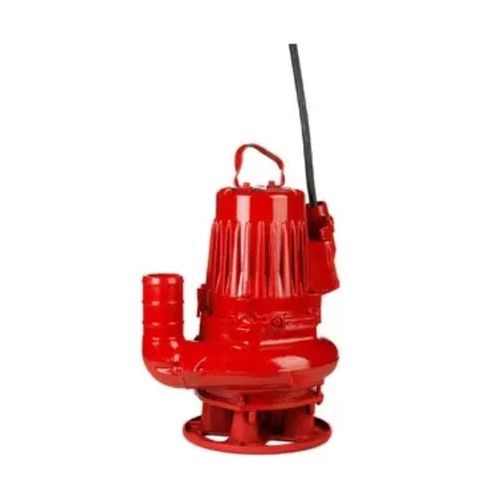

Centrifugal pump Bravo 300slurryelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- slurry
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial, for the mining industry, for the construction industry
- Applications
- discharge
- Fluid specification
- for abrasive fluids
- Voltage
- 400 V
- Protection level
- explosion-proof, IP68
- Head
20 m
(65'07" )- Power
7.5 kW, 8.9 kW
(10.2 hp, 12.1 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Output diameter
460 mm
(18.11 in)- Height
760 mm
(29.92 in)- Weight
157 kg
(346.13 lb)
Description
Product Features
Pump type: Electrical submersible three-phase Slurry pump
Classification: IP 68,
Max submersion: 20m/66 ft,
Cable: 20 m/66 ft SUBCAB [This pump requires an external starter box]
Discharge connection Hose, BSP or NPT
Limitations: ph 5.5-14
Max liquid temp: 40°C/104°F (70°C/158°F on request)
Product code 8147.020; Submersible slurry pumps for pumping fluids with abrasive solids.
All slurry applications don't require heavy duty pumps, and to meet this demand Grindex offer two smaller models, Bravo 200 and Bravo 300. They are intended for applications with lower demands on capability and wear resistance, and they are not equipped with agitator. For capacities below these, we recommend Grindex sludge pumps. Also available in Explosion Proof version.
