Gear pump Simplex

for lubricantselectricstationary

Overview

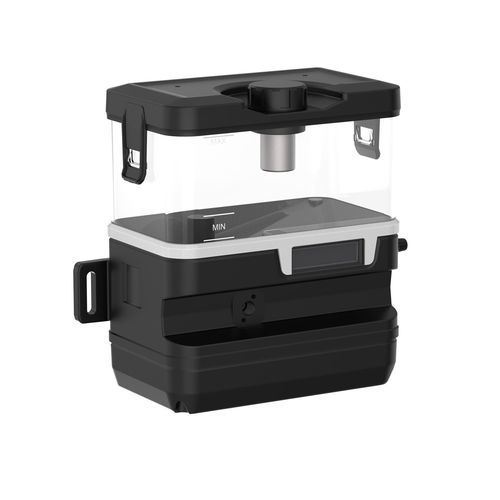

The BEKA Simplex is an electric gear pump designed to replace BEKA Xlube, Mini 2 and Super 3 systems. It supplies oil and fluid greases in single-line lubrication installations, combining a compact 3 L reservoir with a delivery rate of 0.2–0.3 l/min and a maximum operating pressure of 35 bar.

Main features and benefits

• Versatility: Accepts oil (20–700 cSt) and fluid grease (NLGI-000 to NLGI-00).
• Reliable delivery: Robust gear pump with pressure relief valve and internal strainer to protect components.
• Easy operation: Transparent tank for level checks and a single rotary control for adjustment.
• Compact design: Protected drive unit and 3 L tank for space-efficient installation.
• Monitoring: Integrated proximity switch and pressure switch for process control.
• Configurations: Available in 24 V DC or 230 V AC, with or without control unit.

Operation and monitoring
The top-mounted transparent reservoir prevents air pockets when pumping fluid greases and enables quick visual level checks. Integrated proximity and pressure switches allow precise monitoring; motor and control technology reduce inrush current for smoother operation.

Technical data
Principle: Electric gear pump
Outlets: 1
Delivery rate: 0.2 - 0.3 l/min
Lubricants: Oil (20 - 700 cSt) or fluid grease (NLGI-000 - NLGI-00)
Operating temperature: 0 to +40 °C (32 to 104 °F)
Operating pressure: max. 35 bar (507 psi)
Tank capacity: 3 L
Tank material: Transparent plastic
Power supply: 24 V DC or 230 V AC
Protection class: IP54

Applications
Suitable for lubrication of bearings, chains and other components in industrial single-line systems where a compact, reliable and easy-to-maintain unit is required.
