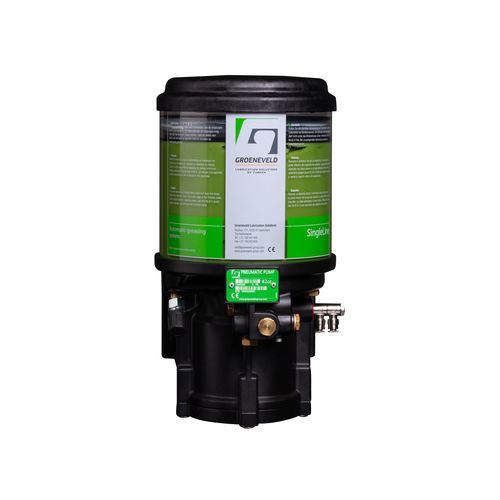

Pneumatic grease pump SingleLine

electricpistonfollower plate

Overview The Groeneveld SingleLine is a single-line lubrication system for transport and industrial applications using NLGI-00 or NLGI-0 grease. It handles long feed lines and many lubrication points. Available in pneumatic and electric versions. Supplied with a follower plate as standard to ensure complete grease usage, visible grease level and to prevent grease degradation by oxidation; allows use of biodegradable greases and pump installation on rotating surfaces. Optional low-level indicator with active warning signal available.

Key features

• Pneumatic and electric versions
• Various reservoir sizes with standard follower plate for full grease utilisation and visible level
• Optional low-level indicator with active alarm
• Patented metering units for precise, adjustable grease distribution
• Metering units integrated in distribution blocks with 1 to 18 outputs
• Distribution components available in corrosion-resistant brass or stainless steel
• Quick-connect coupling for easy extension to attachments
• Suitable for heavy transport equipment, buses, refuse trucks and industrial machines

Technical data Operating principle: Pneumatic piston pump; electric piston, plunger or gear pump
Delivery volume: Pneumatic pumps: 30, 42 or 60 cm3/stroke; Electric pumps: 25, 50 or 120 cm3/min
Lubricant: Fluid grease NLGI-00, Grease NLGI-0
Operating temperature: -25 to +80 °C (-13 to 176 °F)
Operating pressure: Max. 100 bar (1450 psi)
Reservoir sizes: 2.7 l (electric only), 4 l, 6 l, 8 l
Material: Plastic (reservoir)
Power supply: 12 VDC; 24 VDC
Protection class: IP54

Characteristics / technical specifications

• Operating principle: Pneumatic piston; electric piston, plunger or gear pump
• Delivery volume options: Pneumatic 30/42/60 cm3/stroke; Electric 25/50/120 cm3/min
• Compatible lubricants: NLGI-00 and NLGI-0 (biodegradable grease compatible)
• Operating temperature: -25 to +80 °C
• Max. operating pressure: 100 bar (1450 psi)
• Reservoir capacities: 2.7 l (electric only), 4 l, 6 l, 8 l
• Distribution materials: Brass (corrosion-resistant) or stainless steel
• Power supply options: 12 VDC or 24 VDC
• Protection class: IP54
