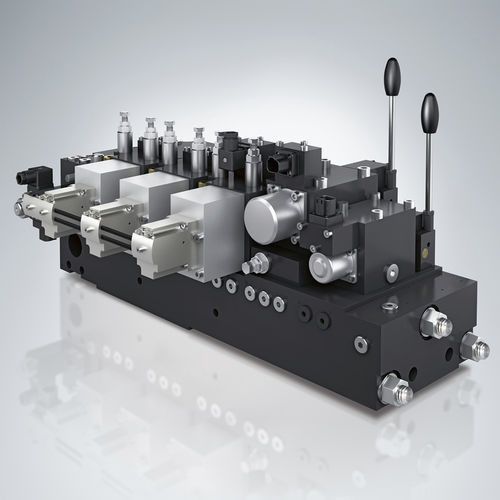

Spool hydraulic directional control valve PSLF, PSVF, SLF series
manualelectro-hydraulicproportional

spool hydraulic directional control valve
spool hydraulic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
manual, electro-hydraulic
Other characteristics
proportional
Flow rate

120 l/min, 270 l/min, 350 l/min, 500 l/min, 1,000 l/min (32 us gal/min)

Operating pressure

400 bar, 420 bar (5,802 psi)

Description

Proportional directional spool valves are a type of directional valve. They control the direction of movement and the velocity of individual or multiple hydraulic consumers actuated simultaneously. Control is independent of the load and continuous. The proportional directional spool valve type PSLF is suitable for constant pump systems and type PSVF for variable pump systems with a pressure/flow controller. The proportional directional spool valve type PSLF and PSVF is available as an individual manifold mounting valve or in the valve bank. The volumetric flows and load pressures for the individual consumers can be individually adjusted. The directional spool valve can be adapted to different control tasks. Connections on the rear permit easy access to the valve for servicing, even in tight installation spaces. All sizes can be combined with each other. The proportional directional spool valve type PSLF and PSVF is used in mobile hydraulics, in particular in crane and lifting equipment, construction and mining machinery, drilling equipment as well as in offshore and marine technology. Features and benefits: Max. flow 1000 lpm at 420 bar Rear side ports for easy access to valves, even in small installation spaces Flange design can be combined across all sizes with fast valve replacement Simultaneous operation of several functions at full speed
