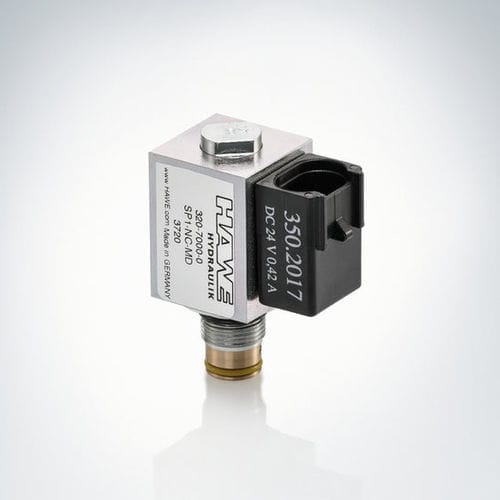

Poppet hydraulic directional control valve spelectro-hydraulic3/22/2-way
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Actuating method
- electro-hydraulic
- Ports/positions
- 3/2, 2/2-way
- Other characteristics
- plug-in
- Operating pressure
200 bar, 250 bar
(2,900.75 psi, 3,625.94 psi)- Flow rate
2 l/min, 4 l/min
(0.5 us gal/min, 1.1 us gal/min)
Description
The directional seated valve type SP is a plug-in valve. It is a cone-seated valve. 2/2 and 3/2 directional seated valves with electromagnetic actuation are available. Depending on the application, the connections for hydraulic fluid may be chosen freely, since these can be used from any flow direction.
The switching magnets are designed for 12 or 24 V DC. The standard version's plug-in valves come with AMP superseal connectors. You can combine type SP1 to a valve bank using chained valves type SL1.
Features and benefits:
Short switching times
Minimal installation space
Low power consumption
Intended applications:
Operating tables
Rescue stretchers
Lifting platforms
Automotive
Catalogs
Other HAWE Hydraulik SE products
Directional seated valves
