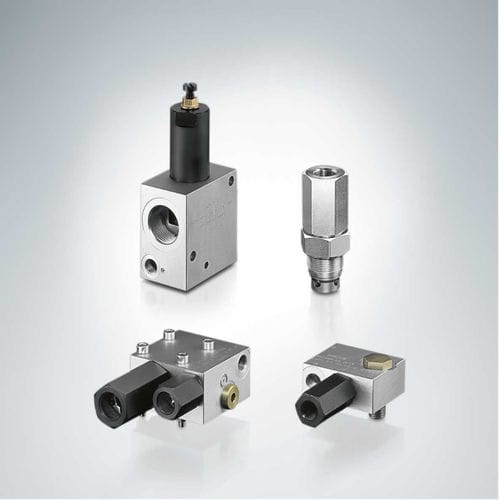

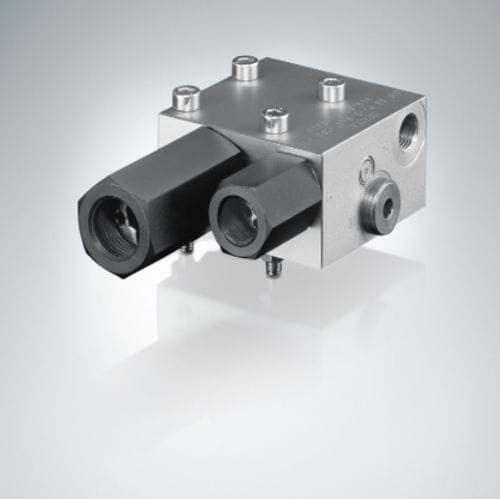

Piston valve LHT, LHTE series
hydraulically-operatedpressure-controlmanifold

piston valve
piston valve
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
hydraulically-operated
Function
pressure-control
Body
manifold
Associated function
balancing
Pressure

400 bar, 420 bar, 700 bar (5,801.5 psi)

Flow rate

28 l/min, 130 l/min, 250 l/min (7 us gal/min)

Description

The load-holding valve type LHT is suitable for applications that are not particularly prone to oscillations. The valve is sealed with zero-leakage when the plant is not running. A possibly occurring pressure surge or gradual pressure increase on the load side of the valve can be relieved by a separate shock valve integrated into the block if needed. Features and benefits: •Operating pressures up to 420 bar •Various adjustment options •Various models Intended applications: •Cranes and lifting equipment •Construction machines •Municipal trucks

Catalogs
