Disc check valve F series
waferhigh-pressurefor cylinders

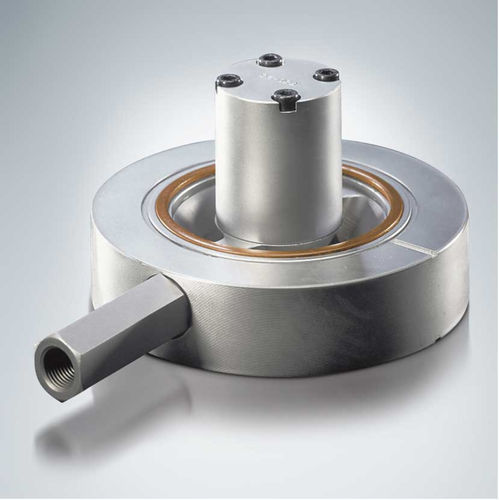

Disc check valve - F series - HAWE Hydraulik SE - wafer / high-pressure / for cylinders
Disc check valve - F series - HAWE Hydraulik SE - wafer / high-pressure / for cylinders
Disc check valve - F series - HAWE Hydraulik SE - wafer / high-pressure / for cylinders - image - 2
Add to favorites
Compare this product
Go to the HAWE Hydraulik SE website for more information

Characteristics

Type
disc
Body
wafer
Applications
high-pressure, for cylinders
Other characteristics
spring, for high flow rates, hydraulic
Pressure

400 bar
(5,801.5 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Flow rate

Min.: 100 l/min
(26.42 us gal/min)

Max.: 7,000 l/min
(1,849.2 us gal/min)

Description

The check valve and pre-fill valve type F is a spring-loaded disk valve and has zero leakage in the closed state. The valve is attached directly to the cylinder and clamped between the base of the cylinder and the welding-neck flange. Alternatively the valve is installed in the line between the front faces of the welding-neck flanges. The valves type F25 - F80 are available with hydraulic release. Hydraulic release suppresses relief surges that can occur at high pressure and with a large consumer volume. Intended applications Press control systems Injection moulding machines
