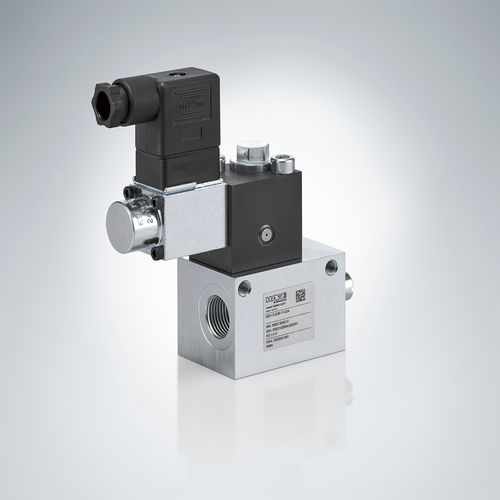

Hydraulically-operated valve SE, SEH series
flow controlfor oilproportional

hydraulically-operated valve
hydraulically-operated valve
Add to favorites
Compare this product

Characteristics

Operation
hydraulically-operated
Function
flow control
Media
for oil
Other characteristics
proportional
Pressure

315 bar, 320 bar (4,568.7 psi)

Flow rate

20 l/min, 30 l/min, 50 l/min, 90 l/min, 120 l/min (5 us gal/min)

Description

Proportional flow control valves are a type of flow valve. They generate a constant flow rate independent of the load which can be controlled in an electro-proportional and remote way. The flow control valve type SE has a directly actuated metering orifice, which has an advantage of approximately Qmin equal to zero in terms of the controllability. The flow control valve type SEH has a piloted metering orifice which is shown to be beneficial in dynamic systems with short reaction times. The flow control valve type SE and SEH is available as a single valve for pipe connection or as a manifold mounting valve. Pressure-limiting valves and randomly switchable idle circulation valves are additional options. The flow control valve type SE and SEH controls the operating speed of hydraulic consumers. Features and benefits: Electrical control of consumer operating speeds Automation of operating cycles Intended applications: Construction machines Machine tools General hydraulic systems Mining machinery
