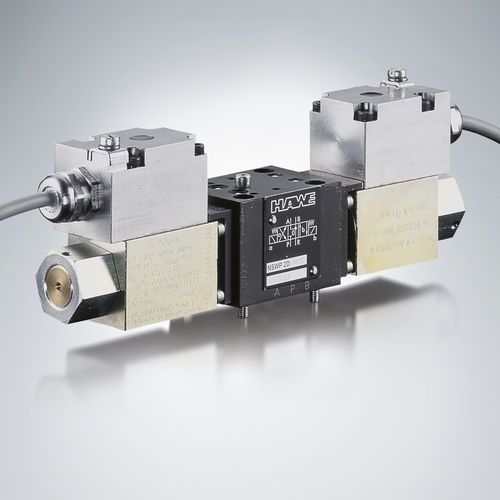

Spool hydraulic directional control valve NSWP 2
solenoid-operatedproportionalcompact

spool hydraulic directional control valve
spool hydraulic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
solenoid-operated
Other characteristics
proportional, compact
Operating pressure

315 bar
(4,569 psi)

Flow rate

25 l/min
(7 us gal/min)

Description

Directional spool valves are a type of directional valve. They control the direction of movement and the velocity of single and double-acting hydraulic consumers. The directional spool valve type NSWP is available as a manifold mounting valve. Type NSWP is available with a nominal size 6 hole pattern (NG 6). The directional spool valve type NSWP can be flexibly adapted to different control tasks by means of additional functions in the pump line and/or on the consumer side (e.g. restrictors, restrictor check valves). Intended applications for the directional spool valve type NSWP include industrial hydraulics, in particular, machine tools. Features and benefits: Compact valve banks possible Proportional functions easy to control Large range of variants Can be combined with NG6 sub-plates (type BA2) Intended applications: Machine tools Construction and construction materials machinery Offshore and marine technology Road vehicles

Catalogs

NSWP 2
NSWP 2
8 Pages
BA
BA
45 Pages
