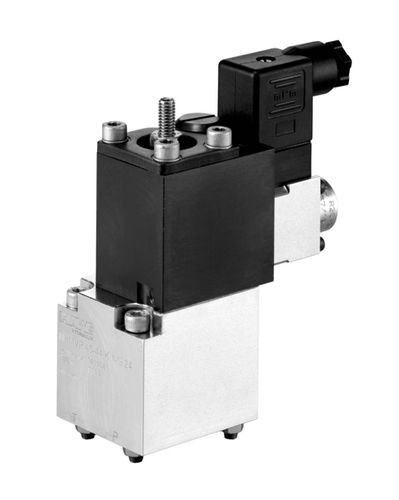

Hydraulic system pressure-limiting valve NPMVP seriessteelpilot-operatedproportional
Add to favorites
Compare this product
Characteristics
- Applications
- for hydraulic systems
- Body material
- steel
- Other characteristics
- pilot-operated, proportional
- Flow rate
Min.: 0 l/min
(0 us gal/min)Max.: 16 l/min
(4.23 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 700 bar
(10,152.6 psi)- Weight
1.1 kg
(2.43 lb)
Description
The pressure-limiting valve type NPMVP is a pilot-controlled valve in a spring-loaded ball version. The pressure can be set to up to 700 bar. The proportional pressure-limiting valve type NPMVP is designed as a manifold mounting valve with flange pattern NG 6. The proportional pressure-limiting valve is particularly suitable for maximum pressure limitation hydraulic systems.
Features and advantages
Precise control over a wide control range
Can be integrated into valve bank type BA and BNG
Intended applications
General hydraulic systems
Test benches
