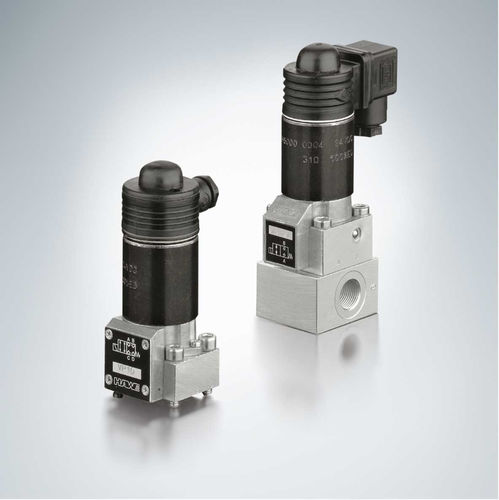

Poppet hydraulic directional control valve VP series
4/2-way3/2-way2/2-way

poppet hydraulic directional control valve
poppet hydraulic directional control valve
Add to favorites
Compare this product


Characteristics

Type
poppet
Ports/positions
4/2-way, 3/2-way, 2/2-way
Flow rate

15 l/min (4 us gal/min)

Operating pressure

400 bar (5,802 psi)

Description

Directional seated valves are a type of directional valve. As cone valves they are tightly sealed without leakage in the closed state. The directional seated valve type VP is a valve for manifold mounting. 2/2, 3/2 and 4/2 directional seated valves with different types of actuation are available. All connections can be subjected to the same pressures. The directional seated valve type VP is suitable above all for highly viscous media (e.g. lubricating grease). Appropriate connection blocks make possible direct pipe connection. Features and benefits: Any flow direction No interaction between actuation elements and medium No sticking or resinification as a result of increased temperatures is possible. Suitable for highly viscous media (e.g. lubricating grease) Explosion-proof version
