Pilot-operated pressure-limiting valve A series
compact

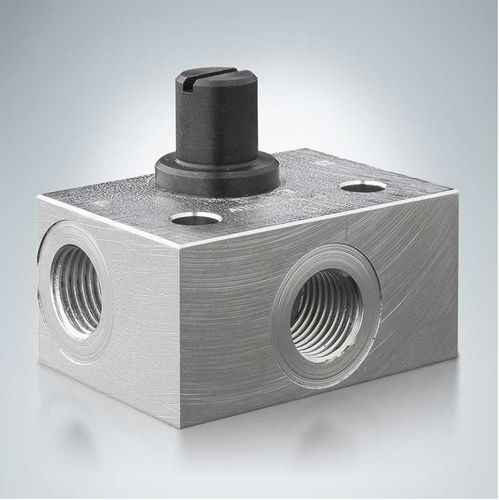

Pilot-operated pressure-limiting valve - A series - HAWE Hydraulik SE - compact
Pilot-operated pressure-limiting valve - A series - HAWE Hydraulik SE - compact
Pilot-operated pressure-limiting valve - A series - HAWE Hydraulik SE - compact - image - 2
Pilot-operated pressure-limiting valve - A series - HAWE Hydraulik SE - compact - image - 3
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Other characteristics
pilot-operated, compact
Flow rate

2 l/min, 8 l/min, 10 l/min
(0.53 us gal/min, 2.11 us gal/min, 2.64 us gal/min)

Pressure

Min.: 18 bar
(261.1 psi)

Max.: 400 bar
(5,801.5 psi)

Weight

Min.: 30 kg
(66.14 lb)

Max.: 350 kg
(771.62 lb)

Description

Pressure reducing valves type ADC and AM are suitable for the supply of control circuits with low oil consumption. These valves feature an override compensation, i.e. acting like a pressure-limiting valve if the secondary pressure exceeds the set pressure e.g. due to external forces. Leakage flow is present due to design-based reasons. Pressure reducing valves type ADM and ADME are suitable for larger flow rates to supply systems with . Features and benefits: Numerous configurations Intended applications: For control oil supply in pilot circuits
