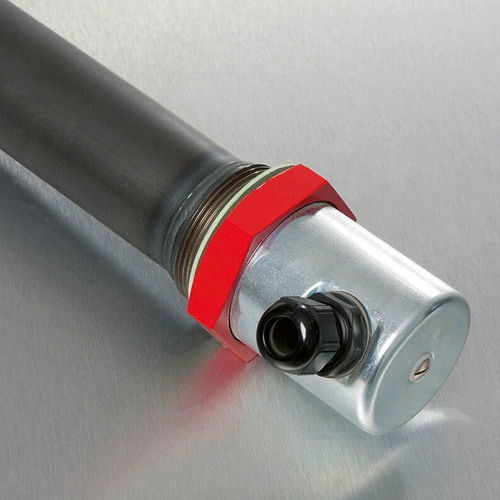

Tubular heating element PTHK
steelfor fluid preheatingindustrial

Tubular heating element - PTHK - HBE GmbH - steel / for fluid preheating / industrial
Tubular heating element - PTHK - HBE GmbH - steel / for fluid preheating / industrial
Tubular heating element - PTHK - HBE GmbH - steel / for fluid preheating / industrial - image - 2
Tubular heating element - PTHK - HBE GmbH - steel / for fluid preheating / industrial - image - 3
Tubular heating element - PTHK - HBE GmbH - steel / for fluid preheating / industrial - image - 4
Add to favorites
Compare this product
Go to the HBE GmbH website for more information

Characteristics

Type
tubular
Material
steel
Applications
industrial, for fluid preheating
Other characteristics
threaded housing
Power

Max.: 4,900 W
(6.66 hp)

Min.: 400 W
(0.54 hp)

Maximum temperature

Max.: 85 °C
(185 °F)

Min.: 0 °C
(32 °F)

Description

HBE tank heaters are used for preheating hydraulic oil and maintaining the operating temperature on hydraulic units.

The heaters are available in the following models: VR tank heaters with magnet clamps, PTHK screw-in cartridge heaters, RHK screw-in tube heaters, and WHK angled screw-in tube heaters, as well as the EDH pre-heaters.

Technical specifications
  • For horizontal mounting under oil level
  • Surface charge approx. 1.5 W/cm² for hydraulic oils
  • Bright galvanised steel cap
  • Material: steel (further materials on request)
  • Wiring schemes for various supply voltages on request
  • Exchangeable ceramic heating insert (mounting / dismounting possible without oil drain)
  • Temperature control for internal (THI) or external (THA) regulation
  • Single pole 0 – 85°C, 16 ampere
  • Protection class IP 54 for THA resp. IP 65 for THI
