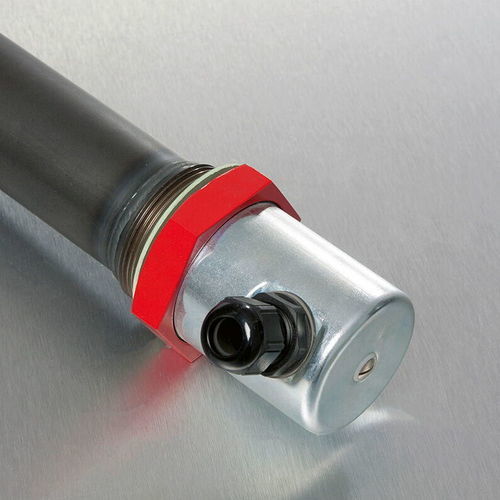

Tubular heating element RHKsteelfor fluid preheatingindustrial
Add to favorites
Compare this product
Characteristics
- Type
- tubular
- Material
- steel
- Applications
- industrial, for fluid preheating
- Other characteristics
- screw-in, threaded housing
- Power
Min.: 380 kW
(516.66 hp)Max.: 2,300 kW
(3,127.13 hp)- Maximum temperature
Min.: 0 °C
(32 °F)Max.: 85 °C
(185 °F)
Description
HBE tank heaters are used for preheating hydraulic oil and maintaining the operating temperature on hydraulic units.
The heaters are available in the following models: VR tank heaters with magnet clamps, PTHK screw-in cartridge heaters, RHK screw-in tube heaters, and WHK angled screw-in tube heaters, as well as the EDH pre-heaters.
Technical specifications
The heaters are available in the following models: VR tank heaters with magnet clamps, PTHK screw-in cartridge heaters, RHK screw-in tube heaters, and WHK angled screw-in tube heaters, as well as the EDH pre-heaters.
Technical specifications
- For horizontal mounting under oil level
- Surface charge approx. 1.5 W/cm² for hydraulic oils
- Bright galvanised steel cap
- Material: steel (further materials on request)
- Wiring schemes for various supply voltages on request
- Exchangeable ceramic heating insert (mounting / dismounting possible without oil drain)
- Temperature control for internal (THI) or external (THA) regulation
- Single pole 0 – 85°C, 16 ampere
- Protection class IP 54 for THA resp. IP 65 for THI
