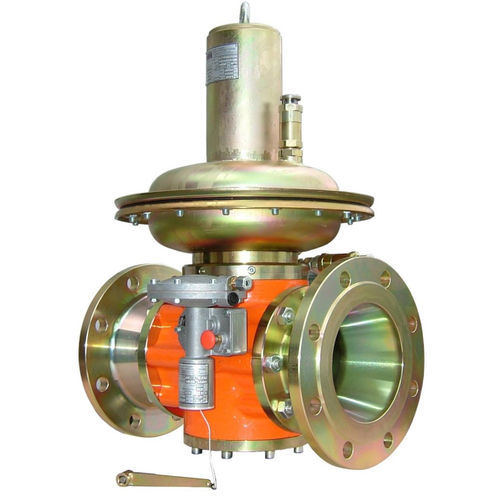

Propane pressure regulator CITYFLOW CF

for airheated gasfor sour gas

The gas pressure regulator CITYFLOW CF was specially developed for communal and industrial applications. It is suitable for pressure control of non aggressive gases from up to 20 bar to constant outlet pressures, independently of variations of inlet pressure and flow. Due to its high flexibility regarding pressure ranges, KG values, design alternatives and connection possibilities, it is also suitable for dynamic control applications, such as burners in furnaces. Benefits  Wide inlet pressure  Outlet pressure 0,02 ÷ 4,5 bar  Inlet / outlet flange variable  Actuator with pressure compensation  With or without safety shut off valve (SSV)  Monitoring feature  Maintenance friendly design Technical data Connections : PN 16 / ANSI150 Set point range : 0,02 ÷ 4,5 bar Regulations : EN 334, EN 14382 DIN-DVGW-Reg.Nr. : CE-0085BS0484 SSV set point range pdso : 0,025 ÷ 4,8 bar pdsu : 0,005 ÷ 3,6 bar Accuracy class : AC 5 Lock up pressure class: 0,02 ÷ 4,5 bar up to SG 20 SSV reaction group : pdso AG 2,5 pdsu AG 5
