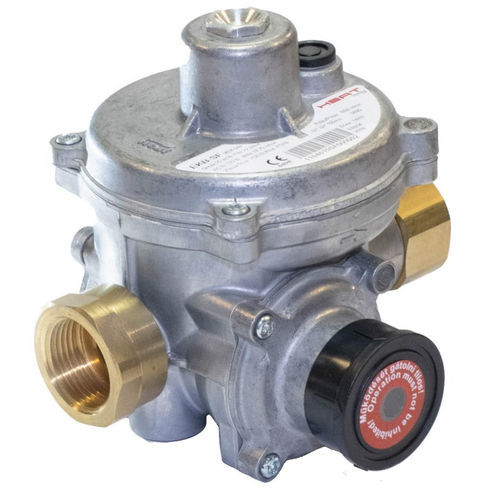

Propane pressure regulator EKB-SMARTfor airfor gasheated gas
Add to favorites
Compare this product
Characteristics
- Product
- for oxygen, for gas, for inert gases, for air, for nitrogen, propane, for CO2, for hydrogen, for butane, for natural gas, for CNG, for methane, for liquefied natural gas, for LPG, for sour gas, heated gas
- Technology
- membrane, piston, spring
- Number of stages
- two-stage
- Material
- brass, cast aluminum, zinc-plated steel
- Applications
- industrial
- Other characteristics
- compact, flange, direct-acting, with filter, direct-operated, CE certified, with integrated safety, for low flow rates, in-line, with shut-off valve
- Pressure
Max.: 10 bar
(145.04 psi)Min.: 0.06 bar
(0.87 psi)- Flow
Max.: 87 m³/h
(3,072.38 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Orifice diameter
25 mm, 40 mm, 50 mm
(0.984 in, 1.575 in, 1.969 in)- Temperature
Max.: 60 °C
(140 °F)Min.: -30 °C
(-22 °F)
Description
The EKB-SMART FLOW is used for gas supply of municipalities and industry as houses, communal
facilities, big flats thru process gas supply for burner in boiler houses.
As standard, the two stage gas pressure regulators are fitted with a safety shut-off valve. A range of
connectors and designs with or without flanges, internal or external threaded, inline or corner
version, pressure cut-off for supply, interruption protection, safety blow-off valve and flow rate
limitation devices are available.
The gas pressure regulator is designed according to PED 2014/68/EU, EN334.
Technical data
Outlet pressure range: pas 20 ÷ 300mbar
Set range of safety shut-off valve:
pso 30 ÷ 400 mbar
psu 15 ÷ 200 mbar
Regulatory class: AC 5/10
Lock-up pressure class: SG 20/30
Accuracy: pso/psu
AGo 10/AGu 30
Flow rate: see diagram
Position of installation: discretionary
