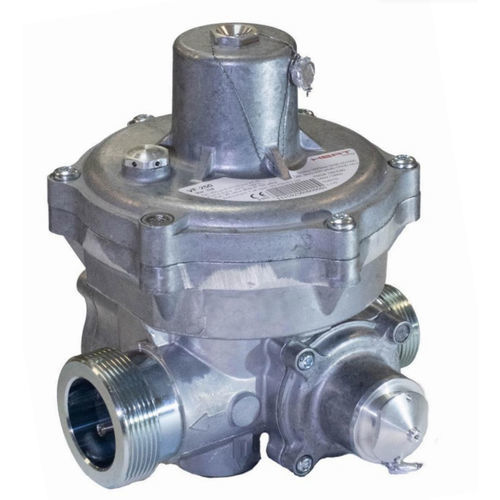

The VILLAGE FLOW is used for gas supply of municipalities and industry as big flats thru process
gas supply for burner in boiler houses.
As standard, the two stage gas pressure regulators are fitted with a safety shut-off valve. A range of connectors and designs with or without flanges, internal or external threaded, inline or corner version, thermal gas cut-off (HTB), safety membrane or pressure cut-off for supply interruption protection, safety blow-off valve and flow rate limitation devices are available.
The gas pressure regulator is designed according PED 2014/68/EU.
Technical data
Perm.inlet pressure: 0,3 ÷ 10,0 bar
Outlet pressure range: pas 20 ÷ 300mbar
Set range of safety shut-off valve:
pso 30 ÷ 400 mbar
psu 15 ÷ 200 mbar
Regulatory class: AC 5/10
Lock-up pressure class: SG 20/30
Accuracy: pso/psu
AGo 10/AGu 30
Flow rate: see diagram
Position of installation: discretionary
Thermic release cc.: 105 / 140°C
internal threaded
external threaded
Materials
Connection inlet/outlet: Zinc plated steel
Diaphragm: Perbunan (pentane
resistant rubber)
O-Ring: NBR, FPM
