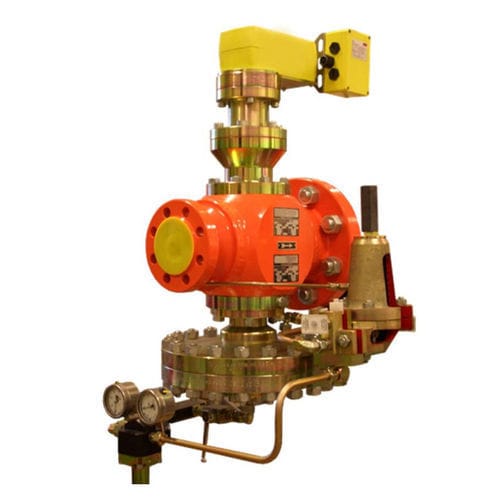

Propane pressure regulator EXFLOW EF

for airheated gasfor sour gas

The regulator consists of the main parts as casing G56, G57, the valve, build as a tube slide valve and the topped actuator performed as an ex-motor in various types. Each step of turn of the modulating actuator causes a direct movement of the valve. In order to safe the plant against to high downstream pressure the electrical regulator can be fit with a monitor regulator are a safety shut of valve in one valve. This solution provides a full value working device, as used normally in gas pressure reducing stations. Additional to the built in silencer in the regulator, a pipe inline silencer type LN40 can be foreseen to fulfil low noise character. This LN40 is the extension to the downstream diameter at the same time. As actuators ex-proof electronic motors are used. The modulating time as well as the used torque can be easily programmed at site. This an essential feature to adapt the system for any case of future parameter of the client. Therefore the gas regulator EXFLOW EF becomes the perfect electric gas regulator for optimizing supply volumes, while at the same time reliably control of the gas pressure is performed. The electric operated gas regulator of type EXFLOW EF is installed for flow and/or pressure control. The type of control (flow/pressure) can be chosen freely. The regulator uses casing series G56 for PN 16/40 (PN 16, ANSI 150; PN 40, ANSI 300) the series G57 is used for pressure up to 100 bar (PN 100, ANSI 600). EXFLOW EF and Gas-doc Programmable controllers are also part of the EXFLOW system, considered already during planning and design.
