Liquids separator HFAH

particlegascyclone

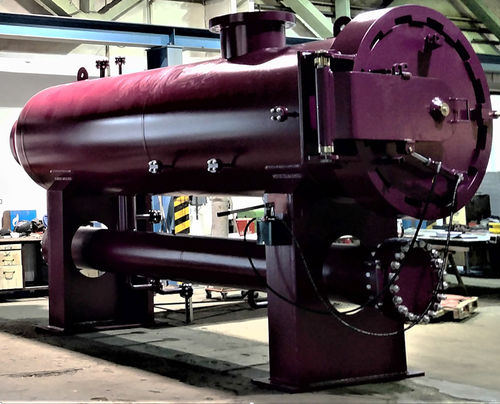

Filter separator Filter separator as horizontal pressure device with separate fixed collecting vessel For high-quality separation of solid and liquid particles in large gas flows 3-stage, suitable for natural gas, related combustible gases, hydroger and aggressive gases Standard equipment with the HEAT energy interlocking quick-release fastener with swivel arm Standard cartridges 5V* x 36r, and/or IT can be equipped on request Benefits Suitable for up to 30% H2 feed into the gas network Management of large gas flows with high levels of solid and liquid contamination Gas pre-cleaning via baffle tubes (of the filter attachment) Stable coalescer cartridges for the retention of solid and liquid particles Downstream, carefully designed vane package for efficient liquid separation Customised design with free orientation of the inlet nozzle Low flow rates for excellent separation Sheath diameter from DN 300, standard equipment with the HEAT energy quick-release fastener Easy manual cleaning thanks to cover with swivel arms on the sump tank Functional description Cleaning of moist and dry particle contaminants with 3-stage separation Baffle tubes for coarse separation Coalescer cartridges with galvanised support basket, multi-layer glass fibre winding and outer hose Vane package with optimised separation pockets for liquid fine separation 1S1 Cleaning solids: 99.5% s 1 to 2 pm 99.9% s 3 pm IS! Cleaning liquids: 99.5% s 8 pm 99.9% s 10 pm Differential pressure, clean cartridge: 10-75 mbar Cartridge change at max: 800 mbar Bursting differential pressure of the cartridge: 3.5 bar
