Air filter ZG series

gascompressed airdust

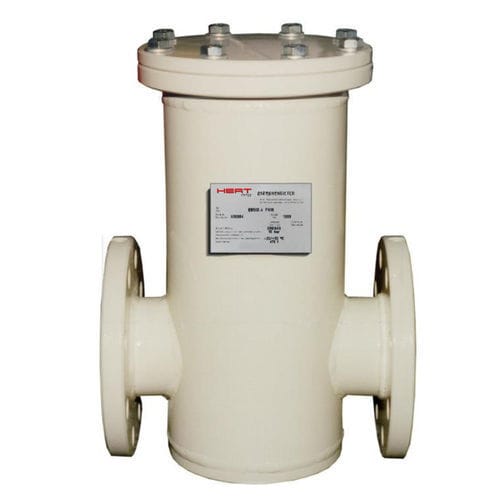

This type of cartridge filter is characterised by its highly compact design. Its dimensions are similar to the traditional cellular cartridge filters that have long been used for PN 16 units. Thus, HEAT energy is the only producer to offer filters that combine all the benefits of a “large” cartridge filter with the advantages of extremely compact dimensions Advantages  same structure as “original” cartridge filters  same dimensions as traditional cellular cartridge filters, i.e. very compact  efficient filter cartridge for safe filtering with external supporting cage and pleated, impregnated cellulose  design rating at a pipe flow velocity of 20 m/s  compartment with discharge screw to trap dust and liquids  connections for differential pressure gauge  acceptance as per EN 10.204 / 3.1 optionally EN 10.204 / 3.2 Description With its type ZGF/ZGEF HEAT energy offers a cartridge filter of a highly compact design. Its connecting flanges are dimensioned for sizes DN 25÷80 as per DIN 2635, for DN 100÷150 acc. to DIN 2633 (optionally acc. to DIN 2635). The rated design pressure is 25 bar as standard and 16 bar at DN 100/150. The filter is equipped with a chamber for solid and liquid residuals to be extracted through a standard discharge screw at the bottom. At the inlet and outlet the standard design provides connections for a differential pressure metering. The filter is provided with a filter cartridge of a similar structure as used in cartridge filters. The element with the robust supporting cage is made of impregnated pleated cellulose, which is highly resistant to the usual gas pollution.
