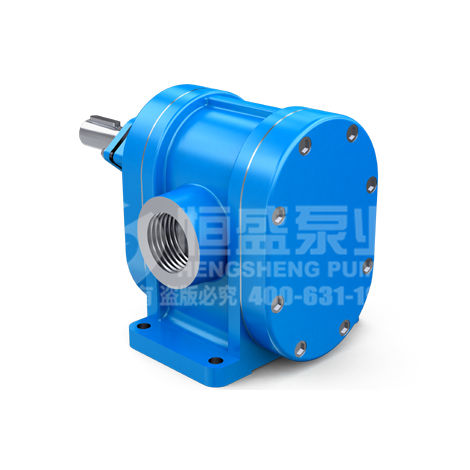

Lubricating oil pump 2CY
fuelelectricself-priming

lubricating oil pump
lubricating oil pump
Add to favorites
Compare this product


Characteristics

Media
lubricating oil, fuel
Operation
electric
Priming
self-priming
Technology
gear
Domain
industrial
Applications
booster, lubrication, conveying, spraying
Other characteristics
small, floating, seal
Flow

21 m³/h (741.608 ft³/h)

Pressure

25 bar (362.594 psi)

Description

2CY gear pump uses: It is suitable for conveying lubricating oil or other liquids with similar properties and lubricating oil without solid particles and fibers, whose temperature is not higher than 300 C, viscosity is 5×10 - 6 1.5×10 - 3 m2 / s, and for hydraulic transmission system. Reduce the speed of the pump, the viscosity of the conveying medium can reach 50000mm2/s. 2CY gear pump performance range: Pressure range: ≤2.5MPa Flow range: ≤21m3/h Temperature range: ≤300℃ The viscosity range is : 5 ~ 1500mm2/s, and the speed can be reduced to 50000mm2/s. 2CY gear pump structure features: This series of gear pumps are mainly composed of gear, shaft, pump body, pump cover, bearing sleeve, shaft end seal (special requirements, optional magnetic drive, zero leakage structure) and so on. The gear has higher hardness and wear resistance by nitriding. It is installed with the shaft in the replaceable shaft sleeve. The lubrication of all parts in the pump is automatically achieved by using the conveying medium when the pump works. The four bearing sleeves in the pump are installed floating in the pump body, and the end clearance is automatically adjusted with the working pressure, so the pressure of the pump is stable, the output flow fluctuation is small, and the volume efficiency is high. 2CY gear pump application area: It can be used as transmission and booster pump in oil transportation system. It can be used as fuel pump for conveying, pressurizing and spraying in the fuel system. It can be used as hydraulic pump to provide hydraulic power in hydraulic transmission system. It can be used as lubricating oil pump in all industrial fields.
