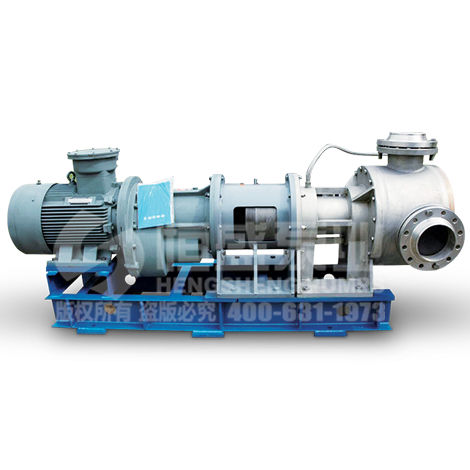

Gear pump NYP

electricindustrialchemical

NYP magnetic drive internal gear pump NYP Magnetic Driven Internal Gear Pump: NYP series magnetic driven internal gear pump is a new type positive displacement pump developed to meet the needs in petroleum, chemical, coating and dyestuff materials, grease, medicine and foodstuff industries, and is extensively used to convey media with different properties and different viscosity, especially suitable for media with high viscosity. Design features: Steady delivery without pulsation, little vibration and noise.Sealed no leakage. The pump can deliver the varied corrosion mediums if the proper material of parts selected In addition the working temperature can reach 200℃ The same rotary direction of internal rotor and outside rotor result in little wear ad long operation life The pumps flow capacity can he deliver high visc medium All rotating parts within the pump are lubricated using transport medium Driving gear (outside rotor ) with internal tooth drives the internal rotor and turns in same direction in the fall closed pump body The pump casing and crescent of the front cower separate the inlet from the outlet .When it tuens negative pressure formed at the suction port the liquid inhaled and being take to the outlet by rotor then the liquid is expelled from the discharge port as the gears mesh The transport - tation of liquid finished. The pumps are mainly composed of internal rotor outside rotor shaft pump casing front cover, seal magnetic drive components, bearing etc Transportation of materials crystallize, the first cover and the pump can be designed with an insulation jacket work with the steam or thermal oil heat to melt.
